Specifications
Specifications
Series | OP |
Certifications | UL |
Status | Active |

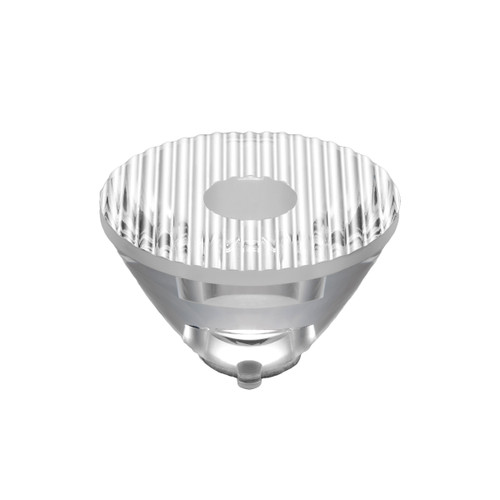

Optic Type | TIR |
Optic Configuration | Optic with Tape |
Nominal Output Angle (deg.) | 5 x 20 |
Lens Shape | Round |
Lens Dimensions - Optics | 35 mm dia x 20.1 mm high |
Light Transmission | 400nm to 900nm >90% |
Lens Material | PMMA |
UL Flammability | HB |
Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
For use with LEDs | Cree XPE, XPE2, XML2, Seoul SZ5 |
IES Files | Dialight_OPT0520002F_IES.zip |
Datasheet | Dialight_datasheet_OPT_35mm_TIR_Optic.pdf |
Request Compliance Documentation | Request Compliance Documentation |
3D STP File | OPTXXXX002.stp |
