| Series |
597 |
| Status |
Discontinued |
| Package |

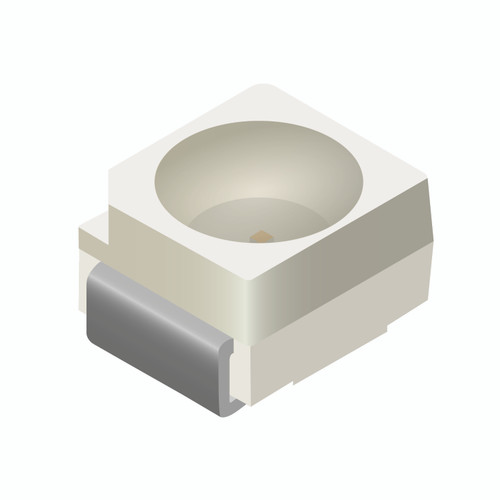

PLCC-4 |
| Mounting Orientation |
Top |
| Emitted Color |
Yellow |
| Emitted Color 2 |
Green |
| Die 1 |
AlInGaP |
| Die 2 |
AlInGaP |
| Lens Color |
Non-Tinted, Diffused |
| Packaging Option |
7" Reel |
| Quantity (per reel/sample) |
2000 |
| Peak Wavelength (nm) COLOR 1 |
592 |
| Peak Wavelength (nm) COLOR 2 |
575 |
| Dominant Wavelength (nm) COLOR 1 Typ |
590 |
| Dominant Wavelength (nm) COLOR 2 Typ |
571 |
| Intensity (mcd) COLOR 1 Min |
56 |
| Intensity (mcd) COLOR 1 Typ |
100 |
| Intensity (mcd) COLOR 2 Typ |
60 |
| Forward Voltage (vdc) - Typ |
1.9 |
| Forward Voltage (vdc) - Max |
2.4 |
| Forward Voltage (vdc) COLOR 2 Typ |
1.9 |
| Forward Voltage (vdc) COLOR 2 Max |
2.4 |
| Reverse Current Intensity (uA) |
5 |
| Power Dissipation (mW) COLOR 1 |
72 |
| Power Dissipation (mW) COLOR 2 |
48 |
| Intensity (mcd) COLOR 2 Min |
22.4 |
| Continuous Forward Current (mA) |
30 |
| Peak Forward Current (mA) |
100 |
| Junction Temp (°C) |
110 |
| Reverse Voltage (V) |
5 |
