Specifications
Specifications
| Series | 597 |

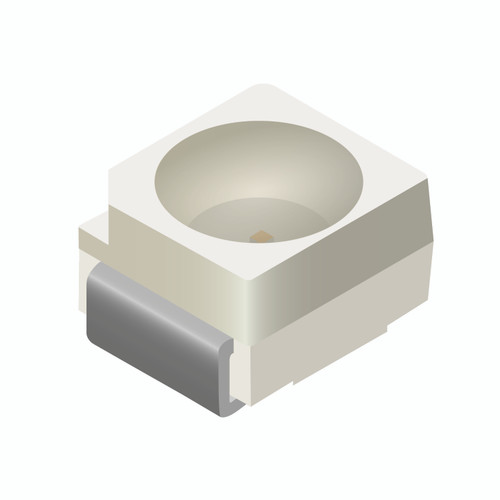

| Package | PLCC-2 |
| Mounting Orientation | Top |
| Output | Single Color |
| Emitted Color | White |
| Die 1 | InGaN |
| Lens Color | Non-Tinted, Non-Diffused |
| Viewing Angle | 131 |
| Intensity (mcd) COLOR 1 Min | 224 |
| Intensity (mcd) COLOR 1 Typ | 285 |
| Intensity (mcd) COLOR 1 Max | 450 |
| Forward Voltage (vdc) - Typ | 3.9 |
| Forward Voltage (vdc) - Max | 4.3 |
| Power Dissipation (mW) COLOR 1 | 114 |
| Continuous Forward Current (mA) | 30 |
| Peak Forward Current (mA) | 90 |
| Junction Temp (°C) | 110 |
| Reverse Voltage (V) | 5 |
| Selector Guide/Catalog | Micro LED® Surface Mount LED Selector Guide |
| Request Compliance Documentation | Request Compliance Documentation |
