87121RB

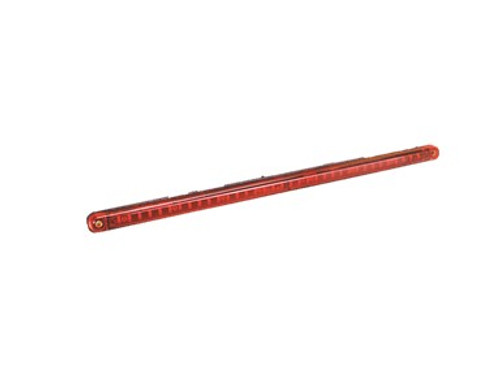

87 Series 12V Red CHMSL EDAC 56801000200 / EDAC 568001000100 Connector

  • Specifications

    Specifications
    Series 87
    Status Active
    Market Commercial
    Lighting Type Stop-Turn-Tail
    Function 1 CHMSL
    Light Color Red
    Color of Lens Red
    Lens Size 1" x 18.5"
    Shape Rectangular
    Nominal Voltage 12 VDC
    Test Voltage 12.8
    Typical Current (ma): Function 1 380
    Connector +Male / -Female
    Terminals +Female / -Male
    Connecter Type EDAC 56801000200 / EDAC 568001000100
    Positions per Connector 1
    Loom No
    Coated Yes
    Potted No
    Flange No
    Vehicle Type Bus
    Sub-Assembly 8800-870-0002-02
  • Datasheet 87 Series Standard.pdf
    Selector Guide/Catalog Dialight Bus Catalog.pdf
