658-2485-303F

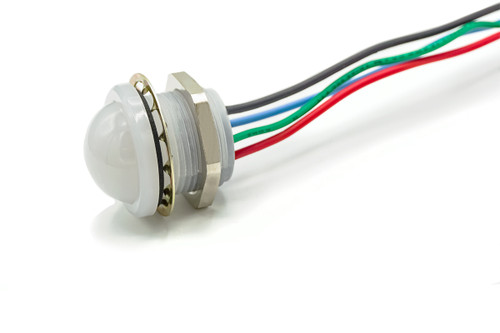

658 LED PMI 1", DOME, RGB, 10-30VDC

  • Specifications

    Specifications
    Series 658
    Certifications RoHS, IP67, NEMA 4X
    Status Active
    Features Watertight
    Mounting Hole Size 1.00" (25.4mm)
    Output TriColor
    Emitted Color Red
    Emitted Color 2 Green
    Emitted Color 3 Blue
    LED Position Internal
    Lens Style Domed
    Lens Color Non-Tinted, Diffused
    Voltage 10-30 VDC
    Mounting Method Nut/Washer
    Max Panel Thickness .350" (8.89mm)
    Mounting Torque 15
    Mounting Torque Unit of Measure lb-in
    Typical Intensity (mcd) 1000
    Typical Intensity Color 2 (mcd) 2100
    Typical Intensity Color 3 (mcd) 400
    Termination 6" Wire Leads
    Lead Wire Gauge 18 AWG
    Housing Material Polycarbonate
    Lens Material Polycarbonate
    Lock Washer Zinc w/ Yellow Chromate
    Nut White Nickel
    Operating Temperature -40°C to +85°C (-40°F to +185°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
