657-1703-103F

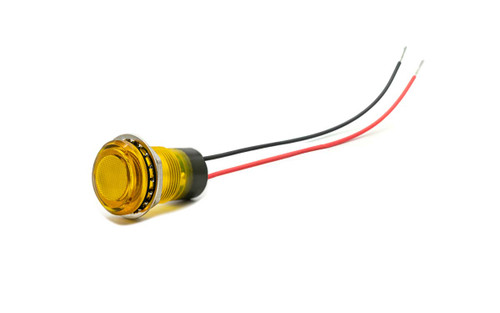

657 LED PMI 0.687" Flat, Yellow, Tintd, Diff, 12 VDC, Watertight

  • Specifications

    Specifications
    Series 657
    Certifications RoHS, IP67, NEMA 4X
    Status Active
    Features Watertight
    Mounting Hole Size 0.687" (17.45mm)
    Output Single Color
    Emitted Color Yellow
    LED Position Internal
    Lens Style Flat
    Lens Color Tinted, Diffused
    Voltage 12 VDC
    Resistor Internal Resistor Included
    Mounting Method Nut/Washer
    Max Panel Thickness .350" (8.89mm)
    Mounting Torque 15
    Mounting Torque Unit of Measure lb-ft
    Typical Current (mA) 20
    Typical Intensity (mcd) 550
    Termination 6" Wire Leads
    Lead Wire Gauge 18 AWG
    Housing Material Polycarbonate
    Lens Material Polycarbonate
    Lock Washer White Nickel
    Nut White Nickel
    Operating Temperature -35°C to +65°C (-31°F to +149°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
