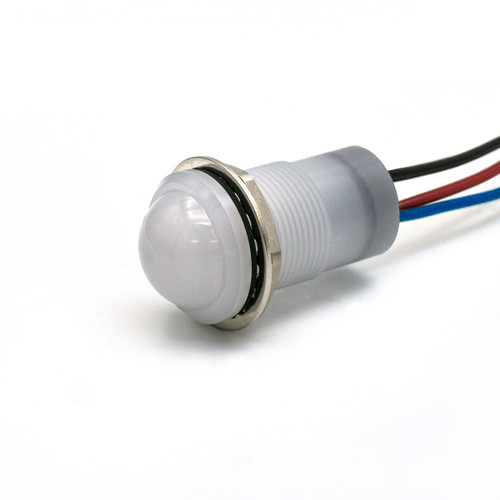

| Series |
657 |
| Certifications |
RoHS, IP67, NEMA 4X |
| Status |
Active |
| Features |
Watertight |
| Mounting Hole Size |
0.687" (17.45mm) |
| Output |
BiColor |
| Emitted Color |
Red |
| Emitted Color 2 |
Blue |
| LED Position |
Internal |
| Lens Style |
Domed |
| Lens Color |
Non-Tinted, Diffused |
| Voltage |
10-30 VDC |
| Resistor |
Internal Resistor Included |
| Mounting Method |
Nut/Washer |
| Max Panel Thickness |
.350" (8.89mm) |
| Mounting Torque |
15 |
| Mounting Torque Unit of Measure |
lb-in |
| Polarity Sensitive |
Yes |
| Typical Current (mA) |
20 |
| Typical Intensity (mcd) |
255 |
| Typical Intensity Color 2 (mcd) |
90 |
| Termination |
6" Wire Leads |
| Lead Wire Gauge |
18 AWG |
| Housing Material |
Polycarbonate |
| Lens Material |
Polycarbonate |
| Lock Washer |
White Nickel |
| Nut |
White Nickel |
| Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Storage Temperature |
-40°C to +100°C (-40F to +212°F) |
