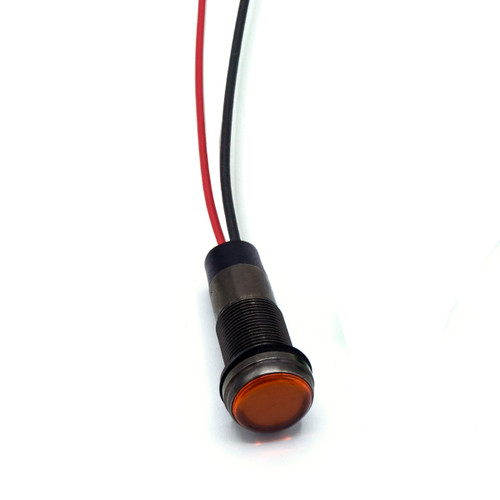

| Series |
656 |
| Status |
Active - Data Coming Soon - Please contact us for specifications. |
| Certifications |
RoHS w/ 6C exemption, IP66, NEMA 4X, UL 1598 (E156890) |
| Mounting Hole Size |
0.500" (12.7mm) |
| Output |
Single Color |
| Emitted Color |
Red |
| LED Position |
Internal |
| Lens Style |
Flat |
| Lens Color |
Tinted, Diffused |
| Voltage |
24 VDC |
| Resistor |
Internal Resistor Included |
| Mounting Method |
Nut/Washer |
| Max Panel Thickness |
.450" (11.43mm) |
| Typical Current (mA) |
20 |
| Typical Intensity (mcd) |
1100 |
| Housing Material |
Metal |
| Lens Material |
Polycarbonate |
| Housing Finish |
Black Nickel |
| Lock Washer |
White Nickel |
| Nut |
White Nickel |
| Operating Temperature |
-30°C to +85°C (-22°F to +185°F) |
| Storage Temperature |
-40°C to +100°C (-40F to +212°F) |
