656-1202-204F

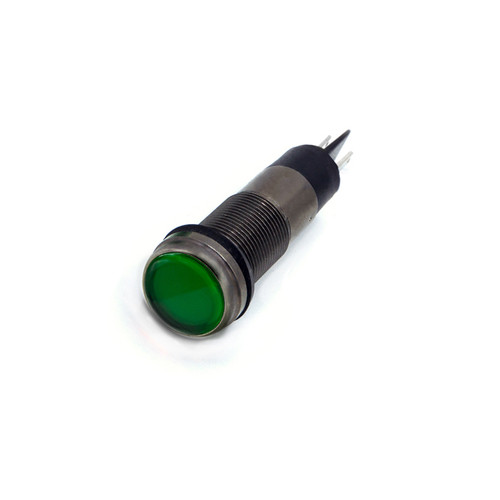

656 Series 1/2" FLT GN 5VDC W/TERM BLACK NICKEL

  • Specifications

    Specifications
    Series 656
    Status Active - Data Coming Soon - Please contact us for specifications.
    Certifications RoHS w/ 6C exemption, IP66, NEMA 4X, UL 1598 (E156890)
    Mounting Hole Size 0.500" (12.7mm)
    Output Single Color
    Emitted Color Green
    LED Position Internal
    Lens Style Flat
    Lens Color Tinted, Diffused
    Voltage 5 VDC
    Resistor Internal Resistor Included
    Mounting Method Nut/Washer
    Max Panel Thickness .450" (11.43mm)
    Typical Current (mA) 15
    Typical Intensity (mcd) 1600
    Housing Material Metal
    Lens Material Polycarbonate
    Housing Finish Black Nickel
    Lock Washer White Nickel
    Nut White Nickel
    Operating Temperature -30°C to +85°C (-22°F to +185°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
  • Datasheet Dialight_datasheet_656_HI.pdf
    Selector Guide/Catalog Dialight_Panel_Mount_Indicator_Catalog.pdf
    3D STP File 6561xxxxx04f.stp
    Request Compliance Documentation Request Compliance Documentation
