656-1409-304F

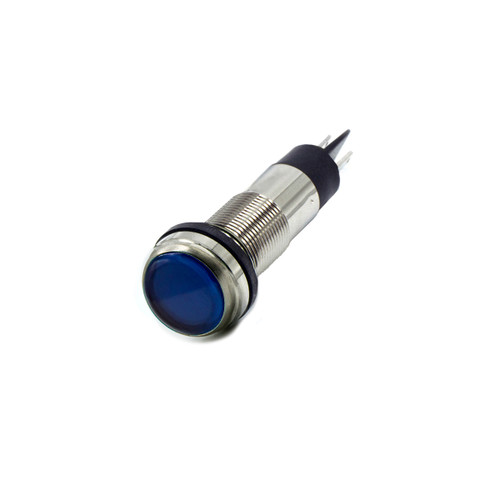

656 LED PMI 0.500" Flat, Blue, 230 VAC, QuickConnect Trmls

  • Specifications

    Specifications
    Series 656
    Certifications RoHS w/ 6C exemption, IP66, NEMA 4X, UL 1598 (E156890)
    Status Active
    Mounting Hole Size 0.500" (12.7mm)
    Output Single Color
    Emitted Color Blue
    LED Position Internal
    Lens Style Flat
    Lens Color Tinted, Diffused
    Voltage 230 VAC
    Resistor Internal Resistor Included
    Mounting Method Nut/Washer
    Max Panel Thickness .450" (11.43mm)
    Typical Current (mA) 3
    Typical Intensity (mcd) 100
    Termination Quick Connect
    Housing Material Metal
    Lens Material Polycarbonate
    Housing Finish White Nickel
    Lock Washer White Nickel
    Nut White Nickel
    Operating Temperature -30°C to +85°C (-22°F to +185°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
  • Datasheet Dialight_datasheet_656_HI.pdf
    Selector Guide/Catalog Dialight_Panel_Mount_Indicator_Catalog.pdf
    3D STP File 6561xxxxx04f.stp
    Request Compliance Documentation Request Compliance Documentation
