656-3006-304F

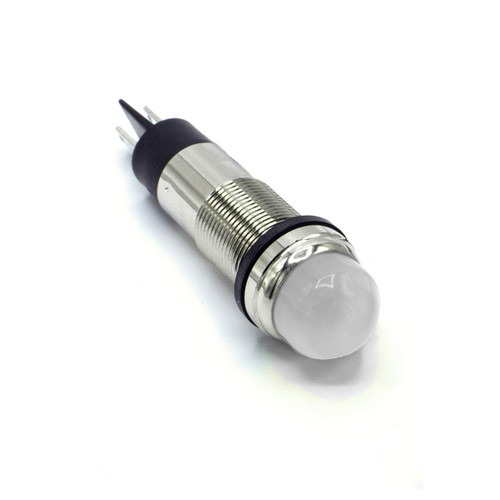

656 LED PMI 0.500" Domed, White, 28 VDC, QuickConnect Trmls

  • Specifications

    Specifications
    Series 664
    Status Active
    Output Single Color
    Emitted Color White
    LED Position Internal
    Lens Style Domed
    Lens Color Tinted, Diffused
    Voltage 28 VDC
    Resistor Internal Resistor Included
    Mounting Method Nut/Washer
    Termination Quick Connect
    Housing Finish White Nickel
    Mounting Hole Size 0.500" (12.7mm)
    Mounting Hole Size 0.500" (12.7mm)
    Mounting Hole Size 0.500" (12.7mm)
    Certifications RoHS
    Mounting Hole Size 0.500" (12.7mm)
    Max Panel Thickness .450" (11.43mm)
    Housing Material Metal
    Lens Material Polycarbonate
    Lock Washer White Nickel
    Nut White Nickel
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
