625-1121-314F

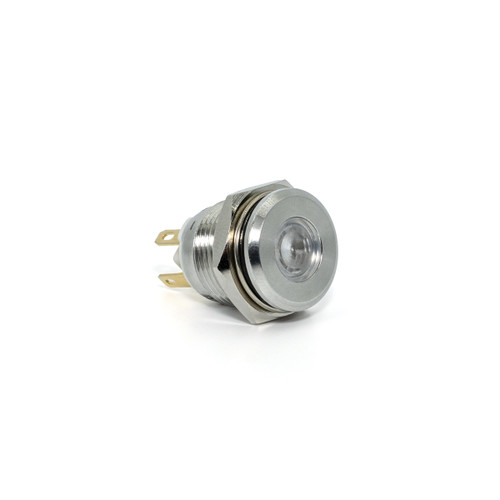

625 LED PMI 16MM RGB 3VDC W/ Terminals

  • Specifications

    Specifications
    Series 625
    Certifications RoHS
    Status Active
    Mounting Hole Size 0.638" (16.2mm)
    Output TriColor
    Emitted Color Red / Green / Blue
    LED Position Internal
    Lens Style Flat
    Lens Color Non-Tinted, Non-Diffused
    Voltage 3 VDC
    Resistor Internal Resistor Included
    Mounting Method Nut/Washer
    Max Panel Thickness .197" (5.00mm)
    Mounting Torque 7.01
    Mounting Torque Unit of Measure lb-ft
    Polarity Sensitive Yes
    Typical Current (mA) 15
    Typical Intensity (mcd) 3000
    Typical Intensity Color 2 (mcd) 5000
    Typical Intensity Color 3 (mcd) 1000
    Termination Solder Terminals
    Housing Material Stainless Steel
    Nut Stainless Steel
    Operating Temperature -40°C to +70°C (-40°F to +158°F)
    Storage Temperature -40°C to +70°C (-40°F to +158°F)
