624-1124-317F

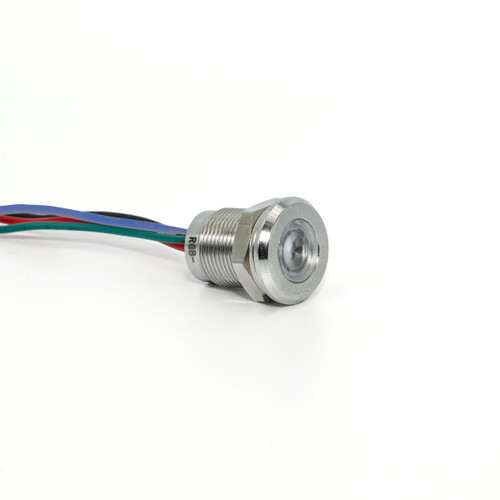

624 LED PMI 12MM RGB 24VDC W/ Wires

  • Specifications

    Specifications
    Series 624
    Certifications RoHS, IK10, IP67
    Status Active
    Mounting Hole Size 0.492" (12.5mm)
    Output TriColor
    Emitted Color Red / Green / Blue
    LED Position Internal
    Lens Style Flat
    Lens Color Non-Tinted, Non-Diffused
    Voltage 24 VDC
    Resistor Internal Resistor Included
    Mounting Method Nut/Washer
    Max Panel Thickness .197" (5.00mm)
    Mounting Torque 7.01
    Mounting Torque Unit of Measure lb-ft
    Polarity Sensitive Yes
    Typical Current (mA) 15
    Typical Intensity (mcd) 3500
    Typical Intensity Color 2 (mcd) 5000
    Typical Intensity Color 3 (mcd) 1000
    Termination 6" Wire Leads
    Housing Material Stainless Steel
    Nut Stainless Steel
    Operating Temperature -40°C to +70°C (-40°F to +158°F)
    Storage Temperature -40°C to +70°C (-40°F to +158°F)
  • Datasheet Dialight_datasheet_624_12mm_Heavy_Duty_Tri.pdf
    3D STP File 62411XX317F.stp
    C-Drawing C18760.pdf
