622-1401-304F

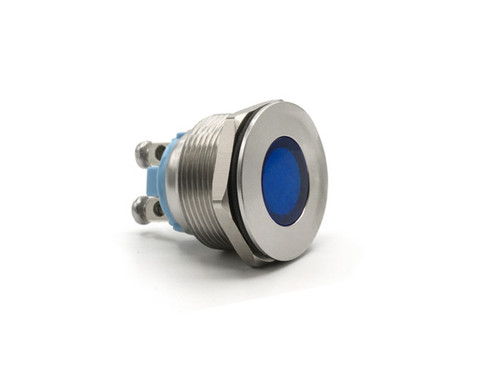

622 LED PMI 22mm Blue 3 VDC

  • Specifications

    Specifications
    Series 622
    Certifications IP66, IP67, NEMA 4X, RoHS, IK10
    Status Active
    Mounting Hole Size 0.866" (22.0mm)
    Output Single Color
    Emitted Color Blue
    LED Position Protruding
    Lens Style Flat
    Lens Color Tinted, Diffused
    Voltage 3 VDC
    Resistor External Resistor Required
    Mounting Method Nut/Washer
    Max Panel Thickness .394" (10.0mm)
    Mounting Torque 7.01
    Mounting Torque Unit of Measure lb-ft
    Typical Current (mA) 15
    Typical Intensity (mcd) 300
    Termination Screw Terminals
    Termination Finish Stainless Steel
    Housing Material Stainless Steel
    Nut Stainless Steel
    Operating Temperature -25°C to +70°C (-13°F to +158°F)
    Storage Temperature -25°C to +70°C (-13°F to +158°F)
  • Datasheet Dialight_PMI_data_622_Jul2019.pdf
    Selector Guide/Catalog Dialight LED PMI Catalog
    3D STP File 622XXXX304F.stp
