621-1124-314F

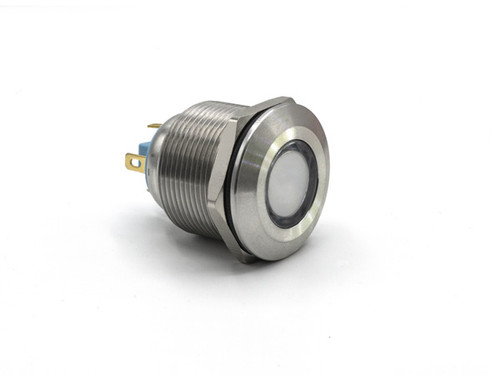

621 LED PMI 22mm RGB Clear Lens 24 VDC

  • Specifications

    Specifications
    Series 621
    Certifications RoHS, IK10, IP66, IP67, NEMA 4X
    Status Active
    Mounting Hole Size 0.866" (22.0mm)
    Output TriColor
    Emitted Color Red
    Emitted Color 2 Green
    Emitted Color 3 Blue
    LED Position Protruding
    Lens Style Flat
    Lens Color Non-Tinted, Non-Diffused
    Voltage 24 VDC
    Resistor Internal Resistor Included
    Mounting Method Nut/Washer
    Max Panel Thickness .394" (10.0mm)
    Mounting Torque 7.01
    Mounting Torque Unit of Measure lb-ft
    Typical Current (mA) 15
    Typical Intensity (mcd) 200
    Typical Intensity Color 2 (mcd) 250
    Typical Intensity Color 3 (mcd) 300
    Termination Solder Terminals
    Termination Finish Stainless Steel
    Housing Material Stainless Steel
    Nut Stainless Steel
    Operating Temperature -25°C to +70°C (-13°F to +158°F)
    Storage Temperature -25°C to +70°C (-13°F to +158°F)
