620-1114-117F

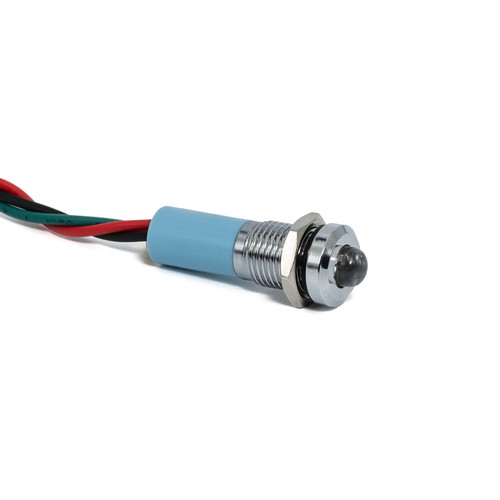

620 LED PMI 8mm Protruding RG 24VDC

  • Specifications

    Specifications
    Series 620
    Certifications RoHS
    Status Active
    Mounting Hole Size 0.323" (8.2mm)
    Output BiColor
    Emitted Color Red / Green
    LED Position Protruding
    Lens Color Non-Tinted, Non-Diffused
    Voltage 24 VDC
    Resistor Internal Resistor Included
    Mounting Method Nut/Washer
    Max Panel Thickness .394" (10.0mm)
    Mounting Torque 7.01
    Mounting Torque Unit of Measure lb-ft
    Polarity Sensitive Yes
    Typical Current (mA) 15
    Typical Intensity (mcd) 1000
    Typical Intensity Color 2 (mcd) 1500
    Termination 6" Wire Leads
    Housing Material Stainless Steel
    Nut Stainless Steel
    Operating Temperature -40°C to +70°C (-40°F to +158°F)
    Storage Temperature -40°C to +70°C (-40°F to +158°F)
