606-3215-140F

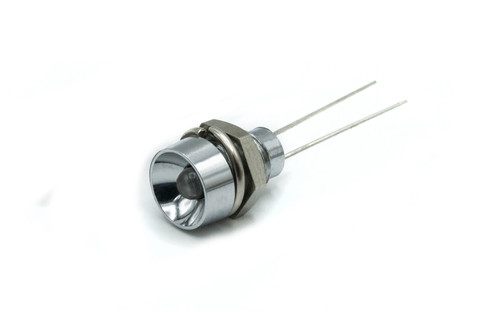

6 MM GREEN LED PMI HT 24V, 6" Wire Leads, Non-tinted, Non-diffused, 26 AWG

  • Specifications

    Specifications
    Series 606
    Status Active
    Certifications RoHS/IP67
    Mounting Hole Size 0.244" (6.2mm)
    Output Single Color
    Emitted Color Green
    LED Position Recessed
    Lens Style Flat
    Lens Color Non-Tinted, Non-Diffused
    Voltage 24 VDC
    Resistor Internal Resistor Included
    Mounting Method Nut/Washer
    Max Panel Thickness .138" (3.50mm)
    Mounting Torque 0.362
    Mounting Torque Unit of Measure lb-ft
    Polarity Sensitive Yes
    Typical Current (mA) 15
    Typical Intensity (mcd) 2500
    Termination 6" Wire Leads
    Lead Wire Gauge 26 AWG
    Housing Material Stainless Steel
    Lock Washer White Nickel
    Nut White Nickel
    Operating Temperature -25°C to +85°C (-13°F to +185°F)
    Storage Temperature -25°C to +100°C (-13°F to +212°F)
