| Series |
599 |
| Certifications |
RoHS |
| Status |
Active |

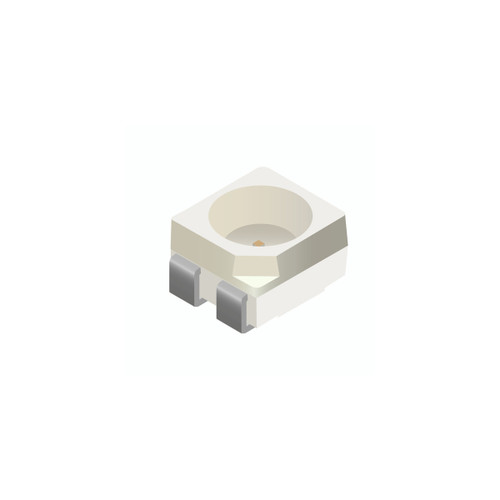

| Package |
PLCC-4 3528 |
| Dimension (mm): Length |
3.5 |
| Dimension (mm): Width |
2.7 |
| Dimension (mm): Height |
1.9 |
| Mounting Orientation |
Top |
| Output |
RGB |
| Emitted Color |
Red |
| Emitted Color 2 |
Green |
| Emitted Color 3 |
Blue |
| Lens Color |
Non-Tinted, Non-Diffused |
| Packaging Option |
7" Reel |
| Quantity (per reel/sample) |
2000 |
| Viewing Angle |
120 |
| Test Current |
20 mA |
| Dominant Wavelength (nm) COLOR 1 Typ |
630 |
| Dominant Wavelength (nm) COLOR 1 TypS |
633 |
| Dominant Wavelength (nm) COLOR 2 Typ |
525 |
| Dominant Wavelength (nm) COLOR 3 Typ |
470 |
| Intensity (mcd) COLOR 1 Min |
80 |
| Intensity (mcd) COLOR 1 Typ |
125 |
| Intensity (mcd) COLOR 1 Max |
320 |
| Intensity (mcd) COLOR 2 Typ |
800 |
| Intensity (mcd) COLOR 3 Typ |
320 |
| Forward Voltage (vdc) - Typ |
2.0 |
| Forward Voltage (vdc) - Max |
2.4 |
| Forward Voltage (vdc) COLOR 2 Typ |
3.0 |
| Forward Voltage (vdc) COLOR 2 Max |
3.6 |
| Forward Voltage (vdc) COLOR 3 Typ |
2.9 |
| Forward Voltage (vdc) COLOR 3 Max |
3.6 |
| Reverse Current Intensity (uA) |
10 |
| Power Dissipation (mW) COLOR 1 |
120 |
| Power Dissipation (mW) COLOR 2 |
108 |
| Power Dissipation (mW) COLOR 3 |
108 |
| Intensity (mcd) COLOR 2 Min |
500 |
| Intensity (mcd) COLOR 3 Min |
125 |
| Forward Voltage (vdc) - Min |
1.5 |
| Forward Voltage (vdc) COLOR 2 Min |
2.8 |
| Forward Voltage (vdc) COLOR 3 Min |
2.8 |
| Continuous Forward Current (mA) |
50/30/30 |
| Peak Forward Current (mA) |
130/100/100 |
| Electrostatic Discharge (HBM) (V) COLOR 1 |
2000 |
| Electrostatic Discharge (HBM) (V) COLOR 2 |
500 |
| Electrostatic Discharge (HBM) (V) COLOR 3 |
500 |
| Reverse Voltage (V) |
5 |
| Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Storage Temperature |
-40°C to +100°C (-40F to +212°F) |
| Solder Max Time/Temp °C |
10 sec @ 260 °C |
