599-0281-007F

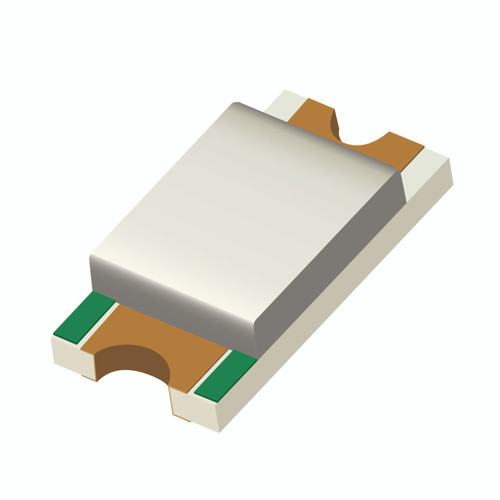

599 SMD LED 1206 pkg Green 525nm 7" Reel

  • Specifications

    Specifications
    Series 599
    Certifications RoHS
    Status Active
    Package 1206
    Dimension (mm): Length 3.2
    Dimension (mm): Width 1.6
    Dimension (mm): Height 0.7
    Mounting Orientation Top
    Output Single Color
    Emitted Color Green
    Die 1 InGaN
    Packaging Option 7" Reel
    Quantity (per reel/sample) 4000
    Viewing Angle 140
    Test Current 20 mA
    Dominant Wavelength (nm) COLOR 1 TypS 525
    Intensity (mcd) COLOR 1 Typ 340
    Forward Voltage (vdc) - Typ 3.2
    Forward Voltage (vdc) - Max 3.6
    Operating Temperature Max +100°C (+212°F)
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
  • Datasheet Dialight_CBI_data_599-1206_Apr2018.pdf
    Selector Guide/Catalog DIA_Selector_Guide_SMD_060820.pdf
