599-0110-007F

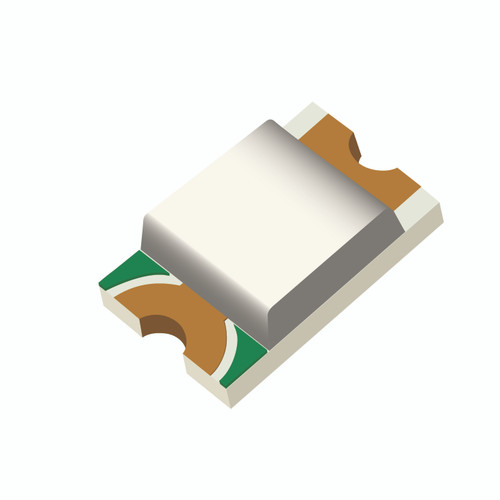

599 SMD LED 0805 pkg Red 633nm 7" Reel

  • Specifications

    Specifications
    Series 599
    Certifications RoHS
    Status Active
    Package 0805
    Dimension (mm): Length 2.0
    Dimension (mm): Width 1.25
    Dimension (mm): Height 0.7
    Mounting Orientation Top
    Output Single Color
    Emitted Color Red
    Die 1 AlInGaP
    Lens Color Non-Tinted, Non-Diffused
    Packaging Option 7" Reel
    Quantity (per reel/sample) 4000
    Viewing Angle 140
    Test Current 20 mA
    Dominant Wavelength (nm) COLOR 1 Typ 633
    Dominant Wavelength (nm) COLOR 1 TypS 633
    Intensity (mcd) COLOR 1 Min 15
    Intensity (mcd) COLOR 1 Typ 29
    Forward Voltage (vdc) - Typ 2.1
    Forward Voltage (vdc) - Max 2.5
    Thermal Resistance (°C/W) 450
    Reverse Current Intensity (uA) 10
    Power Dissipation (mW) COLOR 1 72
    Continuous Forward Current (mA) 30
    Peak Forward Current (mA) 60
    Electrostatic Discharge (HBM) (V) COLOR 1 2000
    Junction Temp (°C) 105
    Reverse Voltage (V) 5
    Operating Temperature Max +100°C (+212°F)
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
