598-8D20-107F

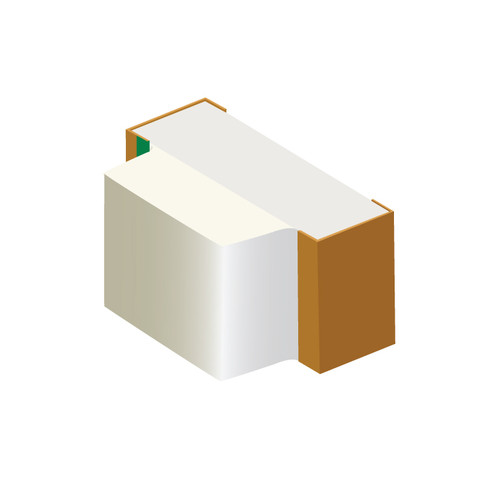

598 SMD LED 0603 pkg RA Red-Orange 625nm 7" Reel

  • Specifications

    Specifications
    Series 598
    Certifications RoHS
    Status Active
    Package 0603
    Dimension (mm): Length 1.6
    Dimension (mm): Width 1.0
    Dimension (mm): Height 0.8
    Mounting Orientation Right Angle
    Output Single Color
    Emitted Color Red-Orange
    Die 1 AlInGaP
    Packaging Option 7" Reel
    Quantity (per reel/sample) 4000
    Viewing Angle 140
    Test Current 20 mA
    Dominant Wavelength (nm) COLOR 1 Typ 625
    Dominant Wavelength (nm) COLOR 1 TypS 625
    Intensity (mcd) COLOR 1 Min 150
    Intensity (mcd) COLOR 1 Typ 240
    Intensity (mcd) COLOR 1 Max 330
    Forward Voltage (vdc) - Typ 1.8
    Forward Voltage (vdc) - Max 2.4
    Power Dissipation (mW) COLOR 1 72
    Continuous Forward Current (mA) 30
    Peak Forward Current (mA) 60
    Electrostatic Discharge (HBM) (V) COLOR 1 2000
    Operating Temperature Max +85°C (+185°F)
    Operating Temperature -40°C to +85°C (-40°F to +185°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
