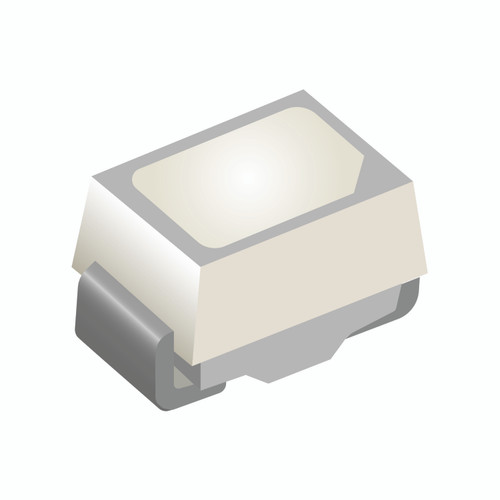

598 C SMD LED mini PLCC2 Green 525nm 7" Reel

  • Specifications

    Series 598 C
    Certifications RoHS
    Status Active
    Package MINI PLCC2
    Dimension (mm): Length 2.2
    Dimension (mm): Width 1.4
    Dimension (mm): Height 1.3
    Mounting Orientation Top
    Features Reflector Cup
    Output Single Color
    Emitted Color Green
    Die 1 InGaN
    Lens Color Non-Tinted, Non-Diffused
    Packaging Option 7" Reel
    Quantity (per reel/sample) 3000
    Viewing Angle 120
    Test Current 20 mA
    Dominant Wavelength (nm) COLOR 1 Typ 521
    Dominant Wavelength (nm) COLOR 1 TypS 525
    Intensity (mcd) COLOR 1 Typ 1900
    Forward Voltage (vdc) - Typ 2.8
    Forward Voltage (vdc) - Max 3.3
    Thermal Resistance (°C/W) 110
    Reverse Current Intensity (uA) 10
    Power Dissipation (mW) COLOR 1 70
    Intensity (mcd) COLOR 1 Min 1500
    Forward Voltage (vdc) - Min 2.8
    Continuous Forward Current (mA) 20
    Peak Forward Current (mA) 100
    Electrostatic Discharge (HBM) (V) COLOR 1 2000
    Junction Temp (°C) 95
    Operating Temperature Max +85°C (+185°F)
    Operating Temperature -40°C to +85°C (-40°F to +185°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
    Intensity (mcd) COLOR 1 Max 2300
