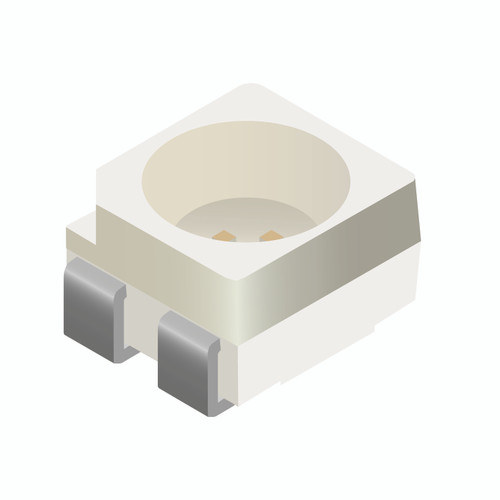

| Series |
597 |
| Certifications |
RoHS |
| Status |
Discontinued |
| Package |
PLCC-4 |
| Dimension (mm): Length |
3.5 |
| Dimension (mm): Width |
2.8 |
| Dimension (mm): Height |
1.9 |
| Mounting Orientation |
Top |
| Output |
TriColor |
| Emitted Color |
Red |
| Emitted Color 2 |
Green |
| Emitted Color 3 |
Yellow |
| Die 1 |
AlInGaP/GaAs |
| Die 2 |
InGaN |
| Die 3 |
AlInGaP/GaAs |
| Lens Color |
Non-Tinted, Non-Diffused |
| Packaging Option |
7" Reel |
| Quantity (per reel/sample) |
2000 |
| Viewing Angle |
120 |
| Test Current |
20 mA |
| Peak Wavelength (nm) COLOR 1 |
635 |
| Peak Wavelength (nm) COLOR 2 |
525 |
| Peak Wavelength (nm) COLOR 3 |
593 |
| Dominant Wavelength (nm) COLOR 1 Typ |
625 |
| Dominant Wavelength (nm) COLOR 1 TypS |
625 |
| Dominant Wavelength (nm) COLOR 2 Typ |
530 |
| Dominant Wavelength (nm) COLOR 2 TypS |
530 |
| Dominant Wavelength (nm) COLOR 3 Typ |
470 |
| Dominant Wavelength (nm) COLOR 3 TypS |
590 |
| Intensity (mcd) COLOR 1 Min |
520 |
| Intensity (mcd) COLOR 1 Typ |
850 |
| Intensity (mcd) COLOR 1 Max |
1150 |
| Intensity (mcd) COLOR 2 Typ |
1650 |
| Intensity (mcd) COLOR 3 Typ |
800 |
| Forward Voltage (vdc) - Typ |
2.1 |
| Forward Voltage (vdc) - Max |
2.4 |
| Forward Voltage (vdc) COLOR 2 Typ |
3.2 |
| Forward Voltage (vdc) COLOR 2 Max |
3.6 |
| Forward Voltage (vdc) COLOR 3 Typ |
2.1 |
| Forward Voltage (vdc) COLOR 3 Max |
2.4 |
| Power Dissipation (mW) COLOR 1 |
72 |
| Power Dissipation (mW) COLOR 2 |
90 |
| Power Dissipation (mW) COLOR 3 |
90 |
| Intensity (mcd) COLOR 2 Min |
800 |
| Intensity (mcd) COLOR 3 Min |
520 |
| Continuous Forward Current (mA) |
30/25/25 |
| Peak Forward Current (mA) |
100 |
| Reverse Voltage (V) |
5 |
| Operating Temperature Max |
+80°C (+176°F) |
| Operating Temperature |
-35°C to +85°C (-31°F to +185°F) |
| Storage Temperature |
-40°C to +100°C (-40F to +212°F) |
