597-7711-307F

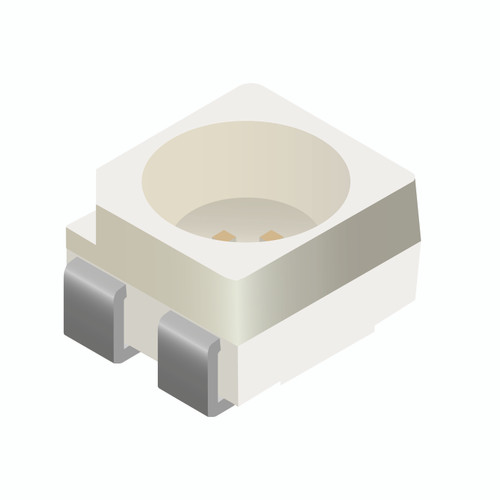

597 SMD LED PLCC-4 pkg TriColor R/G/B 7" Reel

  • Specifications

    Specifications
    Series 597
    Certifications RoHS
    Status Active
    Package PLCC-4
    Dimension (mm): Length 3.5
    Dimension (mm): Width 2.8
    Dimension (mm): Height 1.9
    Mounting Orientation Top
    Output TriColor
    Emitted Color Red
    Emitted Color 2 Green
    Emitted Color 3 Blue
    Die 1 AlInGaP
    Die 2 InGaN
    Die 3 InGaN
    Lens Color Non-Tinted, Non-Diffused
    Packaging Option 7" Reel
    Quantity (per reel/sample) 2000
    Viewing Angle 120
    Test Current 20 mA
    Peak Wavelength (nm) COLOR 1 635
    Peak Wavelength (nm) COLOR 2 565
    Peak Wavelength (nm) COLOR 3 468
    Dominant Wavelength (nm) COLOR 1 Typ 626
    Dominant Wavelength (nm) COLOR 1 TypS 626
    Dominant Wavelength (nm) COLOR 2 Typ 525
    Dominant Wavelength (nm) COLOR 2 TypS 525
    Dominant Wavelength (nm) COLOR 3 Typ 470
    Dominant Wavelength (nm) COLOR 3 TypS 470
    Intensity (mcd) COLOR 1 Typ 80
    Intensity (mcd) COLOR 2 Typ 160
    Intensity (mcd) COLOR 3 Typ 40
    Forward Voltage (vdc) - Typ 1.9
    Forward Voltage (vdc) - Max 2.4
    Forward Voltage (vdc) COLOR 2 Typ 3.4
    Forward Voltage (vdc) COLOR 2 Max 4.05
    Forward Voltage (vdc) COLOR 3 Typ 3.4
    Forward Voltage (vdc) COLOR 3 Max 4.05
    Power Dissipation (mW) COLOR 1 75
    Power Dissipation (mW) COLOR 2 120
    Power Dissipation (mW) COLOR 3 120
    Continuous Forward Current (mA) 20
    Peak Forward Current (mA) 100
    Junction Temp (°C) 110
    Reverse Voltage (V) 5
    Operating Temperature Max +100°C (+212°F)
    Operating Temperature -55°C to +100°C (-67°F to +212°F)
    Storage Temperature -55°C to +100°C (-67°F to +212°F)
  • C-Drawing C17396A.pdf
    Selector Guide/Catalog DIA_Selector_Guide_SMD_060820.pdf
