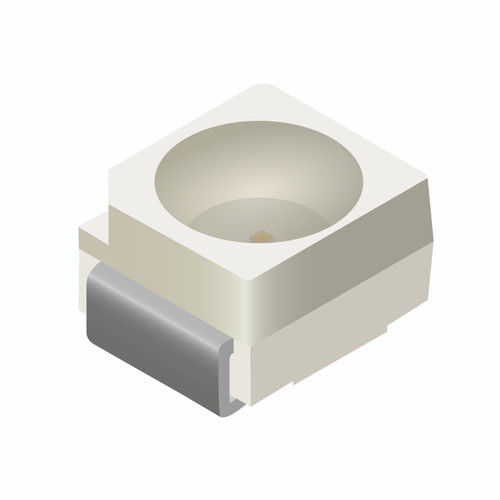

597 SMD LED PLCC-2 Red 640nm 7" Reel

  • Specifications

    Series 597
    Certifications RoHS
    Status Active
    Package PLCC-2
    Dimension (mm): Length 3.5
    Dimension (mm): Width 2.8
    Dimension (mm): Height 1.9
    Mounting Orientation Top
    Output Single Color
    Emitted Color Red
    Die 1 AlInGaP
    Lens Color Non-Tinted, Non-Diffused
    Packaging Option 7" Reel
    Quantity (per reel/sample) 2000
    Viewing Angle 120
    Test Current 20 mA
    Peak Wavelength (nm) COLOR 1 655
    Dominant Wavelength (nm) COLOR 1 Typ 640
    Intensity (mcd) COLOR 1 Typ 150
    Forward Voltage (vdc) - Typ 1.85
    Forward Voltage (vdc) - Max 2.5
    Reverse Current Intensity (uA) 10
    Power Dissipation (mW) COLOR 1 75
    Continuous Forward Current (mA) 30
    Peak Forward Current (mA) 155
    Electrostatic Discharge (HBM) (V) COLOR 1 3000
    Junction Temp (°C) 115
    Reverse Voltage (V) 5
    Operating Temperature Max +85°C (+185°F)
    Operating Temperature -40°C to +85°C (-40°F to +185°F)
    Storage Temperature -40°C to +85°C (-40°F to +185°F)
    Solder Max Time/Temp °C 30 sec @ 255 °C
