| Series |
597 |
| Certifications |
RoHS |
| Status |
Active |

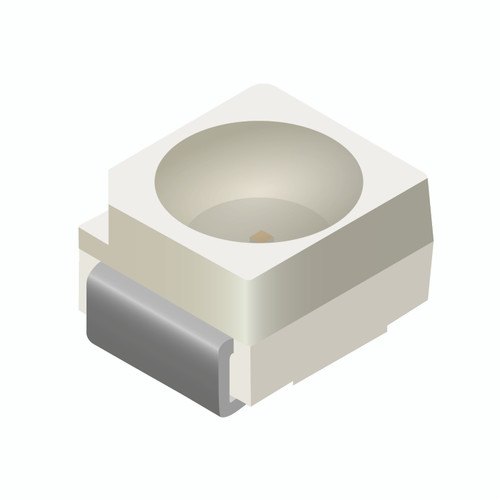

| Package |
PLCC-2 |
| Dimension (mm): Length |
3.2 |
| Dimension (mm): Width |
2.8 |
| Dimension (mm): Height |
1.9 |
| Mounting Orientation |
Top |
| Output |
Single Color |
| Emitted Color |
Green |
| Die 1 |
AlInGaP |
| Lens Color |
Non-Tinted, Non-Diffused |
| Packaging Option |
7" Reel |
| Quantity (per reel/sample) |
2000 |
| Viewing Angle |
120 |
| Test Current |
20 mA |
| Peak Wavelength (nm) COLOR 1 |
572 |
| Dominant Wavelength (nm) COLOR 1 Typ |
570 |
| Intensity (mcd) COLOR 1 Min |
56 |
| Intensity (mcd) COLOR 1 Typ |
98 |
| Intensity (mcd) COLOR 1 Max |
140 |
| Forward Voltage (vdc) - Typ |
2 |
| Forward Voltage (vdc) - Max |
2.4 |
| Reverse Current Intensity (uA) |
10 |
| Forward Voltage (vdc) - Min |
1.8 |
| Continuous Forward Current (mA) |
30 |
| Peak Forward Current (mA) |
1000 |
| Electrostatic Discharge (HBM) (V) COLOR 1 |
2000 |
| Junction Temp (°C) |
125 |
| Reverse Voltage (V) |
12 |
| Operating Temperature Max |
+100°C (+212°F) |
| Operating Temperature |
-40°C to +100°C (-40F to +212°F) |
| Storage Temperature |
-40°C to +100°C (-40F to +212°F) |
| Solder Max Time/Temp °C |
20 sec @ 245 °C |
