| Series |
597 |
| Certifications |
RoHS |
| Status |
Discontinued - Replacement available |
| Replacement P/N |
5988B90107F |

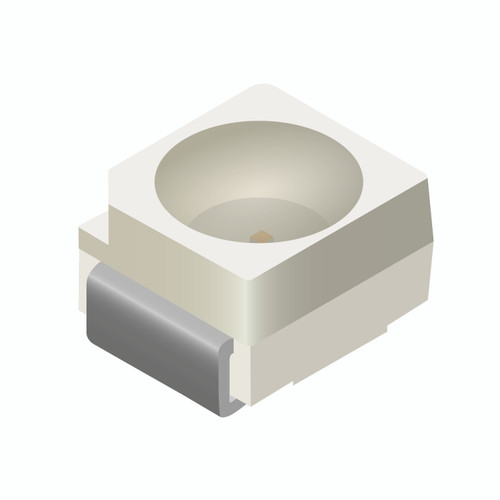

| Package |
PLCC-2 |
| Dimension (mm): Length |
3.5 |
| Dimension (mm): Width |
2.8 |
| Dimension (mm): Height |
1.9 |
| Mounting Orientation |
Top |
| Output |
Single Color |
| Emitted Color |
Blue |
| Die 1 |
InGaN |
| Lens Color |
Non-Tinted, Non-Diffused |
| Packaging Option |
7" Reel |
| Quantity (per reel/sample) |
2000 |
| Viewing Angle |
120 |
| Test Current |
10 mA |
| Peak Wavelength (nm) COLOR 1 |
466 |
| Dominant Wavelength (nm) COLOR 1 Typ |
471 |
| Dominant Wavelength (nm) COLOR 1 TypS |
471 |
| Intensity (mcd) COLOR 1 Min |
14 |
| Intensity (mcd) COLOR 1 Max |
34 |
| Forward Voltage (vdc) - Typ |
3.1 |
| Forward Voltage (vdc) - Max |
3.7 |
| Thermal Resistance (°C/W) |
180 |
| Reverse Current Intensity (uA) |
10 |
| Power Dissipation (mW) COLOR 1 |
80 |
| Forward Voltage (vdc) - Min |
2.7 |
| Continuous Forward Current (mA) |
20 |
| Peak Forward Current (mA) |
200 |
| Electrostatic Discharge (HBM) (V) COLOR 1 |
2000 |
| Junction Temp (°C) |
110 |
| Reverse Voltage (V) |
5 |
| Operating Temperature Max |
+100°C (+212°F) |
| Operating Temperature |
-40°C to +100°C (-40F to +212°F) |
| Storage Temperature |
-40°C to +100°C (-40F to +212°F) |
