597-3321-607F

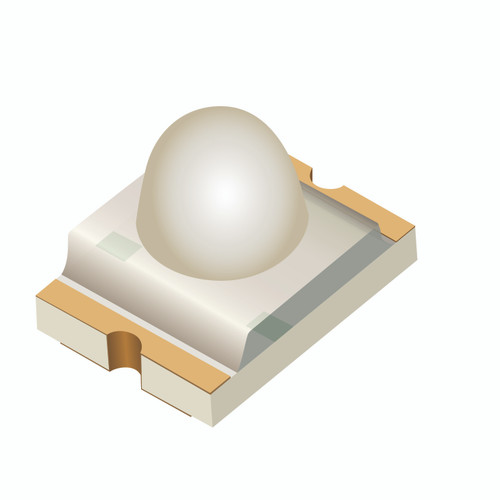

597 SMD LED 1209 pkg Green 525nm w Lens 7" Reel

  • Specifications

    Specifications
    Series 597
    Certifications RoHS
    Status Active
    Package 1209
    Dimension (mm): Length 3.2
    Dimension (mm): Width 2.4
    Dimension (mm): Height 2.38
    Mounting Orientation Top
    Features with Lens
    Output Single Color
    Emitted Color Green
    Die 1 InGaN
    Packaging Option 7" Reel
    Quantity (per reel/sample) 1500
    Viewing Angle 25
    Test Current 20 mA
    Dominant Wavelength (nm) COLOR 1 TypS 525
    Intensity (mcd) COLOR 1 Typ 2000
    Forward Voltage (vdc) - Typ 2.8
    Forward Voltage (vdc) - Max 3.6
    Intensity (mcd) COLOR 1 Min 710
    Operating Temperature Max +80°C (+176°F)
    Operating Temperature -20°C to +80°C (-4°F to +176°F)
    Storage Temperature -30°C to +100°C (-22°F to +212°F)
    Intensity (mcd) COLOR 1 Max 4500
  • C-Drawing C18446A.pdf
    Selector Guide/Catalog Micro LED® Surface Mount LED Selector Guide
