598-8360-117F

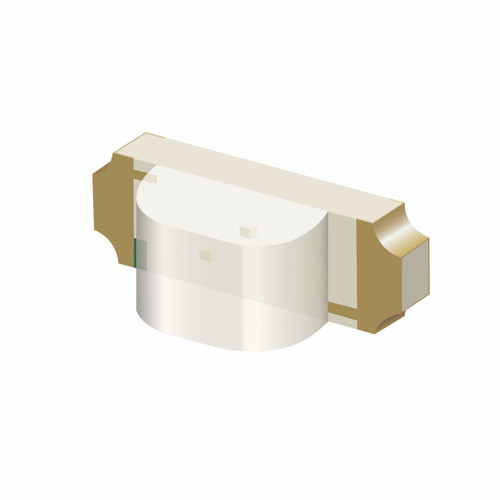

597 SMD LED 1208 pkg RA Yellow-Green 570nm 7" Reel

  • Specifications

    Specifications
    Series 598
    Certifications RoHS
    Status Active
    Package 1208
    Dimension (mm): Length 3.2
    Dimension (mm): Width 1.5
    Dimension (mm): Height 1.0
    Mounting Orientation Right Angle
    Output Single Color
    Emitted Color Yellow-Green
    Die 1 AlInGaP
    Lens Color Non-Tinted, Non-Diffused
    Packaging Option 7" Reel
    Quantity (per reel/sample) 3000
    Viewing Angle 140
    Test Current 20 mA
    Intensity (mcd) COLOR 1 Typ 65
    Forward Voltage (vdc) - Max 2.4
    Thermal Resistance (°C/W) 450
    Reverse Current Intensity (uA) 10
    Power Dissipation (mW) COLOR 1 48
    Intensity (mcd) COLOR 1 Min 43
    Forward Voltage (vdc) - Min 1.8
    Continuous Forward Current (mA) 20
    Peak Forward Current (mA) 100
    Electrostatic Discharge (HBM) (V) COLOR 1 2000
    Reverse Voltage (V) 5
    Operating Temperature Max +100°C (+212°F)
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
    Intensity (mcd) COLOR 1 Max 80
