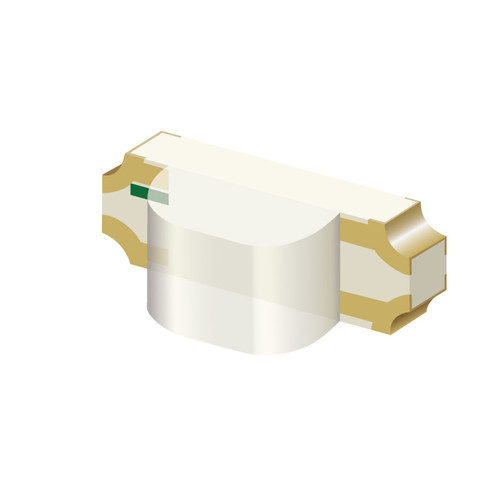

| Series |
598 |
| Certifications |
RoHS |
| Status |
Active |
| Package |
1208 |
| Dimension (mm): Length |
3.2 |
| Dimension (mm): Width |
1.5 |
| Dimension (mm): Height |
1.0 |
| Mounting Orientation |
Right Angle |
| Output |
TriColor |
| Emitted Color |
Red-Orange |
| Emitted Color 2 |
Green |
| Emitted Color 3 |
Blue |
| Die 1 |
AlInGaP |
| Die 2 |
InGaN |
| Die 3 |
InGaN |
| Lens Color |
Non-Tinted, Non-Diffused |
| Packaging Option |
7" Reel |
| Quantity (per reel/sample) |
3000 |
| Viewing Angle |
160 |
| Test Current |
20 mA |
| Dominant Wavelength (nm) COLOR 1 Typ |
625 |
| Dominant Wavelength (nm) COLOR 2 Typ |
521 |
| Dominant Wavelength (nm) COLOR 3 Typ |
470 |
| Intensity (mcd) COLOR 1 Min |
70 |
| Intensity (mcd) COLOR 1 Max |
200 |
| Forward Voltage (vdc) - Max |
2.4 |
| Forward Voltage (vdc) COLOR 2 Max |
3.5 |
| Forward Voltage (vdc) COLOR 3 Max |
3.5 |
| Thermal Resistance (°C/W) |
450 |
| Reverse Current Intensity (uA) |
10 |
| Power Dissipation (mW) COLOR 1 |
48 |
| Power Dissipation (mW) COLOR 2 |
68 |
| Power Dissipation (mW) COLOR 3 |
68 |
| Intensity (mcd) COLOR 2 Min |
200 |
| Intensity (mcd) COLOR 3 Min |
60 |
| Forward Voltage (vdc) - Min |
1.8 |
| Forward Voltage (vdc) COLOR 2 Min |
2.8 |
| Forward Voltage (vdc) COLOR 3 Min |
2.8 |
| Continuous Forward Current (mA) |
20 |
| Peak Forward Current (mA) |
60 |
| Electrostatic Discharge (HBM) (V) COLOR 1 |
1000 |
| Electrostatic Discharge (HBM) (V) COLOR 2 |
1000 |
| Electrostatic Discharge (HBM) (V) COLOR 3 |
1000 |
| Junction Temp (°C) |
95 |
| Derating mA/°C |
0.3 |
| Reverse Voltage (V) |
5 |
| Operating Temperature Max |
+100°C (+212°F) |
| Operating Temperature |
-40°C to +100°C (-40F to +212°F) |
| Storage Temperature |
-40°C to +100°C (-40F to +212°F) |
