597-3403-607F

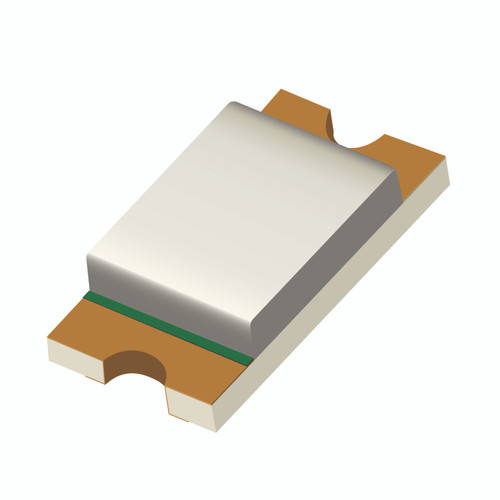

597 SMD LED 1206 pkg Yellow 585nm 7" Reel

  • Specifications

    Specifications
    Series 597
    Certifications RoHS
    Status Active
    Package 1206
    Dimension (mm): Length 3.2
    Dimension (mm): Width 1.6
    Dimension (mm): Height 1.1
    Mounting Orientation Top
    Output Single Color
    Emitted Color Yellow
    Die 1 GaAsP/GaP
    Lens Color Non-Tinted, Non-Diffused
    Packaging Option 7" Reel
    Quantity (per reel/sample) 3000
    Viewing Angle 130
    Test Current 10 mA
    Peak Wavelength (nm) COLOR 1 585
    Dominant Wavelength (nm) COLOR 1 Typ 588
    Forward Voltage (vdc) - Typ 2.1
    Forward Voltage (vdc) - Max 2.6
    Reverse Current Intensity (uA) 10
    Power Dissipation (mW) COLOR 1 50
    Continuous Forward Current (mA) 20
    Peak Forward Current (mA) 40
    Derating mA/°C 0.4
    Reverse Voltage (V) 5
    Operating Temperature Max +85°C (+185°F)
    Operating Temperature -40°C to +85°C (-40°F to +185°F)
    Storage Temperature -40°C to +85°C (-40°F to +185°F)
  • C-Drawing C16529C.pdf
    Selector Guide/Catalog DIA_Selector_Guide_SMD_060820.pdf
