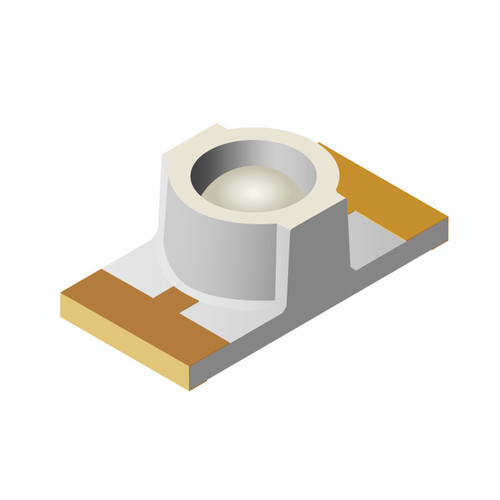

597 SMD LED 1206 pkg RevMount Green 520nm Zener Diode 7" Reel

  • Specifications

    Series 597
    Certifications RoHS
    Status Active
    Package 1206
    Dimension (mm): Length 3.2
    Dimension (mm): Width 1.6
    Dimension (mm): Height 1.1
    Mounting Orientation Reverse Mount
    Features Zener Diode
    Output Single Color
    Emitted Color Green
    Die 1 InGaN
    Lens Color Non-Tinted, Non-Diffused
    Packaging Option 7" Reel
    Quantity (per reel/sample) 3000
    Viewing Angle 70
    Test Current 20 mA
    Peak Wavelength (nm) COLOR 1 530
    Intensity (mcd) COLOR 1 Min 280
    Intensity (mcd) COLOR 1 Max 1120
    Forward Voltage (vdc) - Typ 3
    Forward Voltage (vdc) - Max 3.8
    Power Dissipation (mW) COLOR 1 76
    Forward Voltage (vdc) - Min 2.8
    Continuous Forward Current (mA) 20
    Peak Forward Current (mA) 100
    Operating Temperature Max +80°C (+176°F)
    Operating Temperature -20°C to +80°C (-4°F to +176°F)
    Storage Temperature -30°C to +100°C (-22°F to +212°F)
