| Series |
597 |
| Certifications |
RoHS |
| Status |
Active |

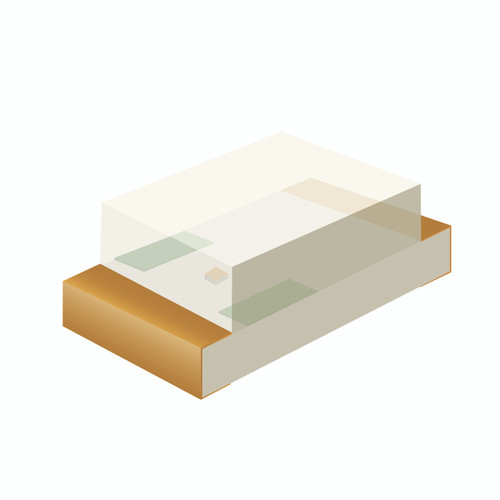

| Package |
0805 |
| Dimension (mm): Length |
2.0 |
| Dimension (mm): Width |
1.24 |
| Dimension (mm): Height |
1.09 |
| Mounting Orientation |
Top |
| Output |
Single Color |
| Emitted Color |
Yellow |
| Die 1 |
GaP |
| Packaging Option |
7" Reel |
| Quantity (per reel/sample) |
3000 |
| Viewing Angle |
130 |
| Test Current |
10 mA |
| Peak Wavelength (nm) COLOR 1 |
585 |
| Dominant Wavelength (nm) COLOR 1 Typ |
588 |
| Dominant Wavelength (nm) COLOR 1 TypS |
588 |
| Intensity (mcd) COLOR 1 Min |
1.6 |
| Intensity (mcd) COLOR 1 Typ |
4 |
| Forward Voltage (vdc) - Typ |
2.1 |
| Forward Voltage (vdc) - Max |
2.6 |
| Power Dissipation (mW) COLOR 1 |
60 |
| Continuous Forward Current (mA) |
20 |
| Peak Forward Current (mA) |
80 |
| Reverse Voltage (V) |
5 |
| Operating Temperature Max |
+85°C (+185°F) |
| Operating Temperature |
-55°C to +85°C (-67°F to +185°F) |
| Storage Temperature |
-55°C to +85°C (-67°F to +185°F) |
| Lens Color |
Non-Tinted, Non-Diffused |
| Intensity (mcd) COLOR 1 Max |
12.5 |
| Reverse Current Intensity (uA) |
100 |
| Electrostatic Discharge (HBM) (V) COLOR 1 |
2000 |
| Derating mA/°C |
0.4 from 50°C |
