597-3505-507F

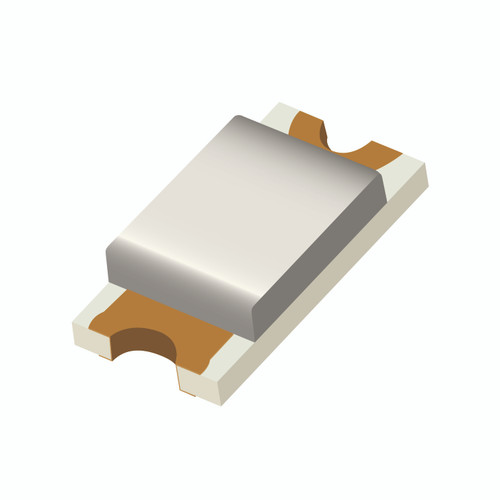

597 SMD LED 0603 pkg Yellow-Green 571nm Single Bin 7" Reel

  • Specifications

    Specifications
    Series 597
    Certifications RoHS
    Status Active
    Package 0603
    Dimension (mm): Length 1.6
    Dimension (mm): Width 0.8
    Dimension (mm): Height 0.55
    Mounting Orientation Top
    Features Single Bin
    Output Single Color
    Emitted Color Yellow-Green
    Die 1 AlInGaP
    Lens Color Non-Tinted, Non-Diffused
    Packaging Option 7" Reel
    Quantity (per reel/sample) 4000
    Viewing Angle 160
    Test Current 20 mA
    Dominant Wavelength (nm) COLOR 1 Typ 571
    Dominant Wavelength (nm) COLOR 1 TypS 571
    Intensity (mcd) COLOR 1 Typ 71
    Forward Voltage (vdc) - Typ 2.1
    Power Dissipation (mW) COLOR 1 87
    Intensity (mcd) COLOR 1 Min 56
    Continuous Forward Current (mA) 35
    Peak Forward Current (mA) 100
    Reverse Voltage (V) 5
    Operating Temperature Max +100°C (+212°F)
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
  • C-Drawing C18369B.pdf
    Selector Guide/Catalog Micro LED® Surface Mount LED Selector Guide
