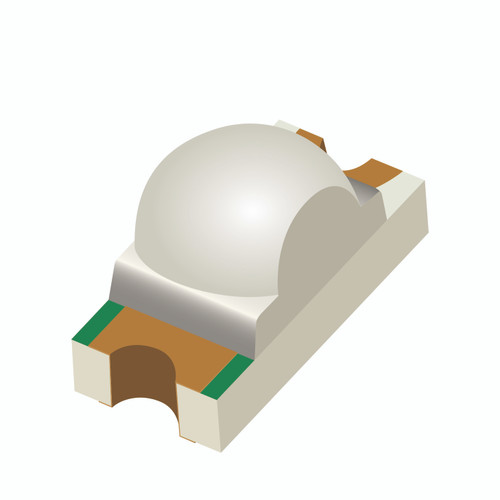

597 SMD LED 0603 pkg Green 560nm w Lens 7" Reel

  • Specifications

    Series 597
    Certifications RoHS
    Status Active
    Package 0603
    Dimension (mm): Length 1.6
    Dimension (mm): Width 0.8
    Dimension (mm): Height 1.24
    Mounting Orientation Top
    Features with Lens
    Output Single Color
    Emitted Color Yellow
    Die 1 AlInGaP/GaAs
    Lens Color Non-Tinted, Non-Diffused
    Packaging Option 7" Reel
    Quantity (per reel/sample) 4000
    Viewing Angle 60
    Test Current 20 mA
    Dominant Wavelength (nm) COLOR 1 Typ 590
    Dominant Wavelength (nm) COLOR 1 TypS 590
    Intensity (mcd) COLOR 1 Typ 320
    Forward Voltage (vdc) - Typ 2
    Power Dissipation (mW) COLOR 1 50
    Continuous Forward Current (mA) 20
    Peak Forward Current (mA) 100
    Reverse Voltage (V) 12
    Operating Temperature Max +100°C (+212°F)
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
