| Series |
597 |
| Certifications |
RoHS |
| Status |
Active |
| Package |

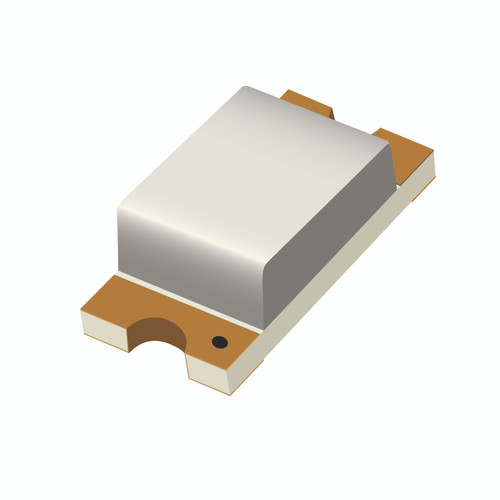

0603 |
| Dimension (mm): Length |
1.6 |
| Dimension (mm): Width |
0.8 |
| Dimension (mm): Height |
0.8 |
| Mounting Orientation |
Top |
| Output |
Single Color |
| Emitted Color |
Blue |
| Die 1 |
InGaN |
| Lens Color |
Non-Tinted, Non-Diffused |
| Packaging Option |
7" Reel |
| Quantity (per reel/sample) |
4000 |
| Test Current |
20 mA |
| Peak Wavelength (nm) COLOR 1 |
468 |
| Dominant Wavelength (nm) COLOR 1 Typ |
470 |
| Intensity (mcd) COLOR 1 Min |
28 |
| Intensity (mcd) COLOR 1 Typ |
60 |
| Intensity (mcd) COLOR 1 Max |
112 |
| Forward Voltage (vdc) - Typ |
2.8 |
| Forward Voltage (vdc) - Max |
3.8 |
| Power Dissipation (mW) COLOR 1 |
76 |
| Forward Voltage (vdc) - Min |
2.8 |
| Continuous Forward Current (mA) |
20 |
| Peak Forward Current (mA) |
100 |
| Reverse Voltage (V) |
5 |
| Operating Temperature Max |
+80°C (+176°F) |
| Operating Temperature |
-20°C to +80°C (-4°F to +176°F) |
| Storage Temperature |
-30°C to +100°C (-22°F to +212°F) |
