597-7726-607F

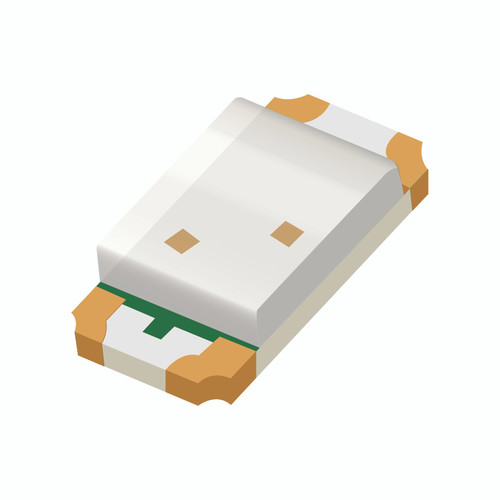

597 SMD LED 0603 pkg BiColor G/R 7" Reel

  • Specifications

    Specifications
    Series 597
    Certifications RoHS
    Status Active
    Package 0603
    Dimension (mm): Length 1.6
    Dimension (mm): Width 0.8
    Dimension (mm): Height 0.7
    Mounting Orientation Top
    Output BiColor
    Emitted Color Green
    Emitted Color 2 Red
    Die 1 AlInGaP
    Die 2 AlInGaP
    Lens Color Non-Tinted, Non-Diffused
    Packaging Option 7" Reel
    Quantity (per reel/sample) 4000
    Viewing Angle 130
    Test Current 20 mA
    Peak Wavelength (nm) COLOR 1 574
    Peak Wavelength (nm) COLOR 2 639
    Dominant Wavelength (nm) COLOR 2 TypS
    Intensity (mcd) COLOR 1 Typ 45
    Intensity (mcd) COLOR 2 Typ 71
    Forward Voltage (vdc) - Typ 1.9
    Forward Voltage (vdc) - Max 2.4
    Forward Voltage (vdc) COLOR 2 Typ 1.9
    Forward Voltage (vdc) COLOR 2 Max 2.4
    Power Dissipation (mW) COLOR 1 62
    Continuous Forward Current (mA) 25
    Peak Forward Current (mA) 60
    Reverse Voltage (V) 5
    Operating Temperature Max +85°C (+185°F)
    Operating Temperature -30°C to +85°C (-22°F to +185°F)
    Storage Temperature -40°C to +85°C (-40°F to +185°F)
  • C-Drawing C18240E.pdf
    Selector Guide/Catalog DIA_Selector_Guide_SMD_060820.pdf
