| Series |
597 |
| Certifications |
RoHS |
| Status |
Active |

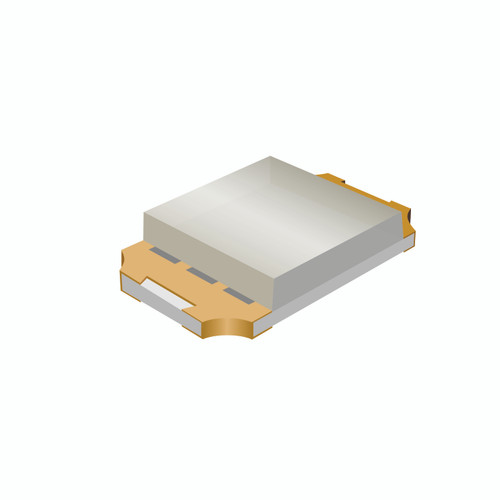

| Package |
0402 |
| Dimension (mm): Length |
1.0 |
| Dimension (mm): Width |
0.6 |
| Dimension (mm): Height |
0.2 |
| Mounting Orientation |
Top |
| Output |
Single Color |
| Emitted Color |
White |
| Die 1 |
InGaN |
| Lens Color |
Non-Tinted, Non-Diffused |
| Packaging Option |
7" Reel |
| Quantity (per reel/sample) |
4000 |
| Viewing Angle |
135 |
| Test Current |
5 mA |
| Chromaticity Coordinates (xy) or CCT (K) |
X = 0.30 / Y = 0.30 |
| Intensity (mcd) COLOR 1 Min |
90 |
| Intensity (mcd) COLOR 1 Typ |
150 |
| Intensity (mcd) COLOR 1 Max |
360 |
| Forward Voltage (vdc) - Typ |
2.9 |
| Power Dissipation (mW) COLOR 1 |
33 |
| Continuous Forward Current (mA) |
10 |
| Peak Forward Current (mA) |
50 |
| Operating Temperature Max |
+85°C (+185°F) |
| Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Storage Temperature |
-40°C to +100°C (-40F to +212°F) |
