| Series |
597 |
| Certifications |
RoHS |
| Status |
Active |

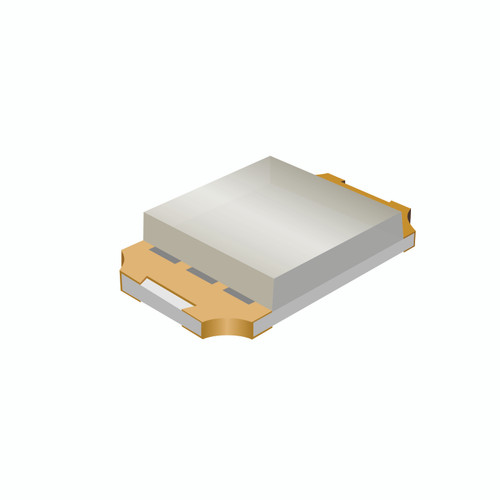

| Package |
0402 |
| Dimension (mm): Length |
1.0 |
| Dimension (mm): Width |
0.6 |
| Dimension (mm): Height |
0.2 |
| Mounting Orientation |
Top |
| Output |
Single Color |
| Emitted Color |
Red |
| Die 1 |
AlInGaP |
| Lens Color |
Non-Tinted, Non-Diffused |
| Packaging Option |
7" Reel |
| Quantity (per reel/sample) |
5000 |
| Viewing Angle |
135 |
| Test Current |
20 mA |
| Dominant Wavelength (nm) COLOR 1 Typ |
630 |
| Dominant Wavelength (nm) COLOR 1 TypS |
630 |
| Intensity (mcd) COLOR 1 Min |
25 |
| Intensity (mcd) COLOR 1 Typ |
60 |
| Intensity (mcd) COLOR 1 Max |
100 |
| Forward Voltage (vdc) - Typ |
2 |
| Power Dissipation (mW) COLOR 1 |
50 |
| Continuous Forward Current (mA) |
20 |
| Peak Forward Current (mA) |
100 |
| Reverse Voltage (V) |
5 |
| Operating Temperature Max |
+85°C (+185°F) |
| Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Storage Temperature |
-40°C to +100°C (-40F to +212°F) |
