597-3027-507F

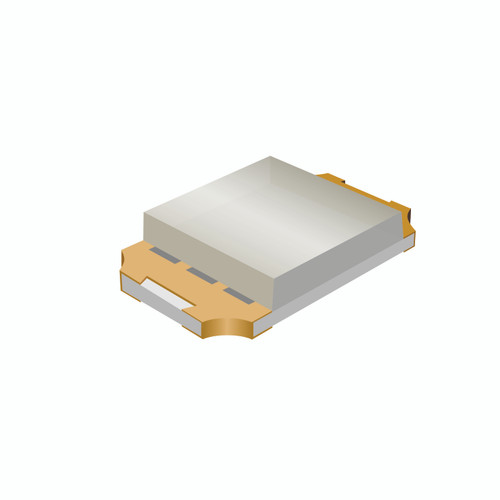

597 SMD LED 0402 pkg Red 620nm 7" Reel

  • Specifications

    Specifications
    Series 597
    Certifications RoHS
    Status Active
    Package 0402
    Dimension (mm): Length 1.000
    Dimension (mm): Width 0.6
    Dimension (mm): Height 0.200
    Mounting Orientation Top
    Output Single Color
    Emitted Color Red
    Die 1 AlInGaP
    Lens Color Non-Tinted, Non-Diffused
    Packaging Option 7" Reel
    Quantity (per reel/sample) 5000
    Viewing Angle 135
    Test Current 20 mA
    Dominant Wavelength (nm) COLOR 1 Typ 620
    Dominant Wavelength (nm) COLOR 1 TypS 620
    Intensity (mcd) COLOR 1 Typ 85
    Forward Voltage (vdc) - Typ 2
    Power Dissipation (mW) COLOR 1 50
    Continuous Forward Current (mA) 20
    Peak Forward Current (mA) 100
    Reverse Voltage (V) 5
    Operating Temperature Max +85°C (+185°F)
    Operating Temperature -40°C to +85°C (-40°F to +185°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
  • C-Drawing C18001C.pdf
    Selector Guide/Catalog DIA_Selector_Guide_SMD_060820.pdf
