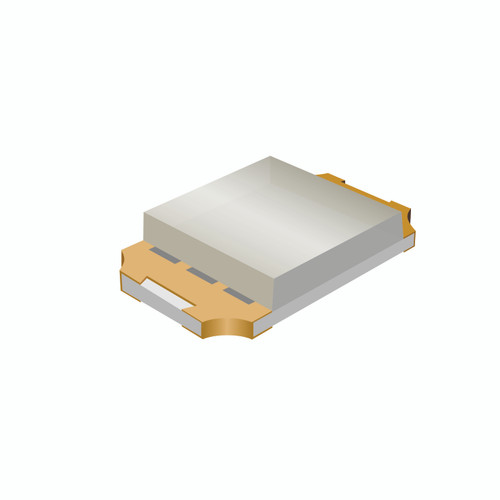

| Series |
597 |
| Certifications |
RoHS |
| Status |
Discontinued - Replacement available |
| Package |
0402 |
| Dimension (mm): Length |
1.0 |
| Dimension (mm): Width |
0.6 |
| Dimension (mm): Height |
0.2 |
| Mounting Orientation |
Top |
| Output |
Single Color |
| Emitted Color |
Blue |
| Die 1 |
InGaN |
| Lens Color |
Non-Tinted, Non-Diffused |
| Packaging Option |
7" Reel |
| Quantity (per reel/sample) |
5000 |
| Viewing Angle |
135 |
| Test Current |
2 mA |
| Dominant Wavelength (nm) COLOR 1 Typ |
470 |
| Dominant Wavelength (nm) COLOR 1 TypS |
470 |
| Intensity (mcd) COLOR 1 Min |
9 |
| Intensity (mcd) COLOR 1 Typ |
25 |
| Intensity (mcd) COLOR 1 Max |
56 |
| Forward Voltage (vdc) - Typ |
2.9 |
| Forward Voltage (vdc) - Max |
3.3 |
| Reverse Current Intensity (uA) |
100 |
| Power Dissipation (mW) COLOR 1 |
33 |
| Forward Voltage (vdc) - Min |
2.65 |
| Continuous Forward Current (mA) |
10 |
| Peak Forward Current (mA) |
50 |
| Electrostatic Discharge (HBM) (V) COLOR 1 |
2000 |
| Reverse Voltage (V) |
5 |
| Operating Temperature Max |
+85°C (+185°F) |
| Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Storage Temperature |
-40°C to +100°C (-40F to +212°F) |
| Solder Max Time/Temp °C |
10 sec @ 260 °C |
| Replacement P/N |
5988A90107F|5991A90147F |
