596-2525-013F

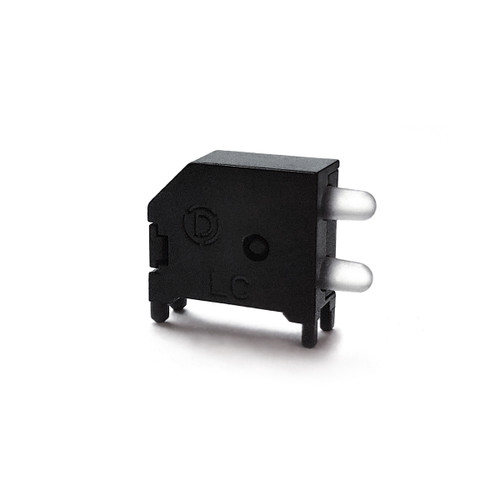

596 Prism® SMD 1.6mm BiLevel Rnd O,O 13" Reel

  • Specifications

    Specifications
    Series 596
    Certifications RoHS
    Status Active
    Lens Size (mm) 1.6
    Lens Shape Round
    Lens Material Silicone
    Levels BiLevel
    Output Single Color
    Position 1 Emitted Color Orange
    Position 2 Emitted Color Orange
    Packaging Option 13" Reel
    Quantity (per reel/sample) 500
    Test Current Pos 1 20 mA
    Test Current Pos 2 20 mA
    Typ Dominant Wavelength - Pos 1 (nm) 605
    Typ Dominant Wavelength - Pos 2 (nm) 605
    Typ Intensity - Pos 1 (mcd) 17 @ 10 mA
    Typ Intensity - Pos 2 (mcd) 17 @ 10 mA
    Typ Fwd Voltage - Pos 1 1.8
    Typ Fwd Voltage - Pos 2 1.8
    Max Fwd Voltage - Pos 1 2.4
    Max Fwd Voltage - Pos 2 2.4
    Viewing Angle 30
    Power Dissipation - Pos 1 (mW) 70
    Power Dissipation - Pos 2 (mW) 70
    Forward Current - Pos 1 (mA) 20
    Forward Current - Pos 2 (mA) 20
    Peak Fwd Current - Pos 1 (mA) 80
    Peak Fwd Current - Pos 2 (mA) 80
    Electrostatic Discharge - Pos 1 (V) 2000
    Electrostatic Discharge - Pos 2 (V) 2000
    Operating Temperature -40°C to +85°C (-40°F to +185°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
    Solder Max Time/Temp °C 10 sec @ 260 °C
  • Datasheet 596 Prism® Datasheet
    C-Drawing 596 Prism® SMD Detailed Spec
    3D STP File 5962XXXXXXF.stp
    Request Compliance Documentation Request Compliance Documentation
