593-353535-313NF

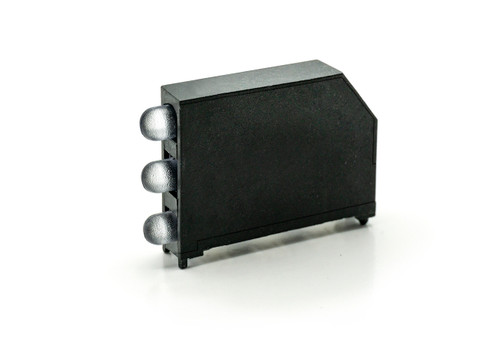

593 Prism® SMD 3mm TriLevel Rnd TriColor R/G/B,R/G/B,R/G/B 13" Reel

  • Specifications

    Specifications
    Series 593
    Certifications RoHS
    Status Active
    Lens Size (mm) 3.0
    Lens Shape Round
    Lens Material Silicone
    Levels TriLevel
    Output TriColor
    Position 1 Emitted Color Red / Green / Blue
    Position 2 Emitted Color Red / Green / Blue
    Position 3 Emitted Color Red / Green / Blue
    Packaging Option 13" Reel
    Quantity (per reel/sample) 150
    Test Current Pos 1 20 mA
    Test Current Pos 2 20 mA
    Test Current Pos 3 20 mA
    Typ Dominant Wavelength - Pos 1 (nm) 626 / 525 / 470
    Typ Dominant Wavelength - Pos 2 (nm) 626 / 525 / 470
    Typ Dominant Wavelength - Pos 3 (nm) 626 / 525 / 470
    Typ Intensity - Pos 1 (mcd) 45/114/25
    Typ Intensity - Pos 2 (mcd) 45/114/25
    Typ Intensity - Pos 3 (mcd) 45/114/25
    Typ Fwd Voltage - Pos 1 1.9 / 3.4 / 3.4
    Typ Fwd Voltage - Pos 2 1.9 / 3.4 / 3.4
    Typ Fwd Voltage - Pos 3 1.9 / 3.4 / 3.4
    Max Fwd Voltage - Pos 1 2.4 / 4.05 / 4.05
    Max Fwd Voltage - Pos 2 2.4 / 4.05 / 4.05
    Max Fwd Voltage - Pos 3 2.4 / 4.05 / 4.05
    Power Dissipation - Pos 1 (mW) 75 / 120 / 120
    Power Dissipation - Pos 2 (mW) 75 / 120 / 120
    Power Dissipation - Pos 3 (mW) 75 / 120 / 120
    Forward Current - Pos 1 (mA) 20
    Forward Current - Pos 2 (mA) 20
    Forward Current - Pos 3 (mA) 20
    Peak Fwd Current - Pos 1 (mA) 100
    Peak Fwd Current - Pos 2 (mA) 100
    Peak Fwd Current - Pos 3 (mA) 100
    Operating Temperature -55°C to +100°C (-67°F to +212°F)
    Storage Temperature -55°C to +100°C (-67°F to +212°F)
  • C-Drawing C18426B.pdf
