593-232424-313NF

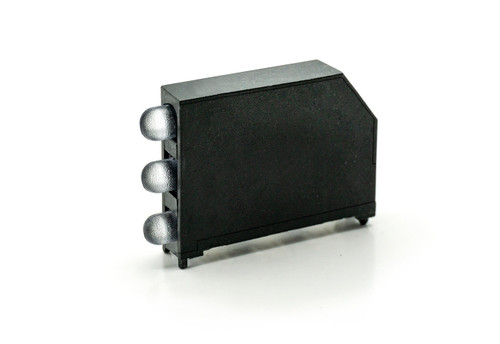

593 Prism® SMD 3mm TriLevel Rnd G,Y,Y 13" Reel

  • Specifications

    Specifications
    Series 593
    Certifications RoHS
    Status Active
    Lens Size (mm) 3.0
    Lens Shape Round
    Lens Material Silicone
    Levels TriLevel
    Output Single Color
    Position 1 Emitted Color Green
    Position 2 Emitted Color Yellow
    Position 3 Emitted Color Yellow
    Packaging Option 13" Reel
    Quantity (per reel/sample) 150
    Test Current Pos 1 10 mA Int / 20 mA Voltage
    Test Current Pos 2 10 mA Int / 20 mA Voltage
    Test Current Pos 3 10 mA Int / 20 mA Voltage
    Typ Dominant Wavelength - Pos 1 (nm) 570
    Typ Dominant Wavelength - Pos 2 (nm) 587
    Typ Dominant Wavelength - Pos 3 (nm) 587
    Typ Intensity - Pos 1 (mcd) 66
    Typ Intensity - Pos 2 (mcd) 66
    Typ Intensity - Pos 3 (mcd) 66
    Typ Fwd Voltage - Pos 1 2
    Typ Fwd Voltage - Pos 2 2
    Typ Fwd Voltage - Pos 3 2
    Max Fwd Voltage - Pos 1 2.4
    Max Fwd Voltage - Pos 2 2.4
    Max Fwd Voltage - Pos 3 2.4
    Power Dissipation - Pos 3 (mW) 0
    Forward Current - Pos 1 (mA) 30
    Forward Current - Pos 2 (mA) 30
    Forward Current - Pos 3 (mA) 30
    Peak Fwd Current - Pos 1 (mA) 1000
    Peak Fwd Current - Pos 2 (mA) 200
    Peak Fwd Current - Pos 3 (mA) 200
    Electrostatic Discharge - Pos 1 (V) 2000
    Electrostatic Discharge - Pos 2 (V) 2000
    Electrostatic Discharge - Pos 3 (V) 2000
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
    Solder Max Time/Temp °C 5 sec @ 260 °C
