592-3531-832F

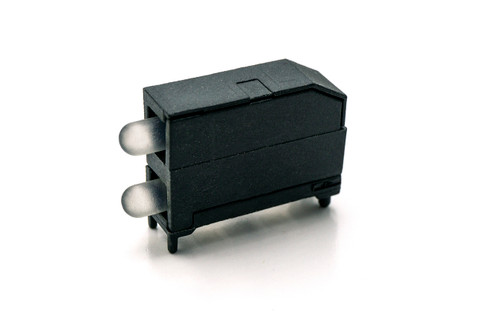

592 Prism® SMD 3mm BiLevel Rnd R/G/B,Y/G 13" Reel

  • Specifications

    Specifications
    Series 592
    Certifications RoHS
    Status Active
    Lens Size (mm) 3.0
    Lens Shape Round
    Lens Material Silicone
    Levels BiLevel
    Output BiColor
    Position 1 Emitted Color Red / Green / Blue
    Position 2 Emitted Color Yellow / Green
    Packaging Option 13" Reel
    Quantity (per reel/sample) 300
    Test Current Pos 1 20 mA
    Test Current Pos 2 2 mA
    Typ Dominant Wavelength - Pos 1 (nm) 626 / 525 / 470
    Typ Dominant Wavelength - Pos 2 (nm) 587 / 570
    Typ Intensity - Pos 1 (mcd) 31/84/16
    Typ Intensity - Pos 2 (mcd) 14/5
    Typ Fwd Voltage - Pos 1 1.9 / 3.4 / 3.4
    Typ Fwd Voltage - Pos 2 1.8 / 1.8
    Max Fwd Voltage - Pos 1 2.4 / 4.05 / 4.05
    Max Fwd Voltage - Pos 2 2.2 / 2.2
    Power Dissipation - Pos 1 (mW) 75 / 120 / 120
    Forward Current - Pos 1 (mA) 20
    Forward Current - Pos 2 (mA) 15
    Peak Fwd Current - Pos 1 (mA) 100
    Peak Fwd Current - Pos 2 (mA) 100
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
    Solder Max Time/Temp °C 30 sec @ 245 °C
  • C-Drawing C18349B.pdf
