592-2727-313F

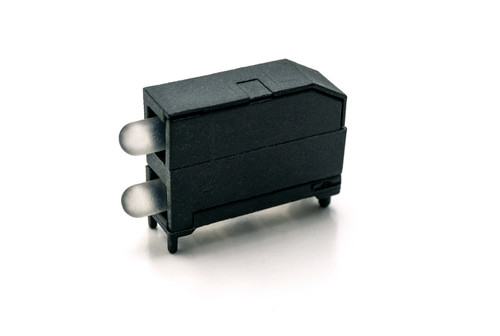

592 Prism® SMD 3mm BiLevel Rnd Hi Y, Hi Y 13" Reel

  • Specifications

    Specifications
    Series 592
    Certifications RoHS
    Status Active
    Lens Size (mm) 3.0
    Lens Shape Round
    Lens Material Silicone
    Levels BiLevel
    Output Single Color
    Position 1 Emitted Color Yellow
    Position 2 Emitted Color Yellow
    Packaging Option 13" Reel
    Quantity (per reel/sample) 300
    Test Current Pos 1 20 mA
    Test Current Pos 2 20 mA
    Typ Dominant Wavelength - Pos 1 (nm) 587
    Typ Dominant Wavelength - Pos 2 (nm) 587
    Typ Intensity - Pos 1 (mcd) 60
    Typ Intensity - Pos 2 (mcd) 60
    Typ Fwd Voltage - Pos 1 2
    Typ Fwd Voltage - Pos 2 2
    Max Fwd Voltage - Pos 1 2.4
    Max Fwd Voltage - Pos 2 2.4
    Power Dissipation - Pos 1 (mW) 80
    Power Dissipation - Pos 2 (mW) 80
    Forward Current - Pos 1 (mA) 30
    Forward Current - Pos 2 (mA) 30
    Peak Fwd Current - Pos 1 (mA) 200
    Peak Fwd Current - Pos 2 (mA) 200
    Electrostatic Discharge - Pos 1 (V) 2000
    Electrostatic Discharge - Pos 2 (V) 2000
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
    Solder Max Time/Temp °C 30 sec @ 255 °C
  • C-Drawing C17882K.pdf
