592-2020-313NF

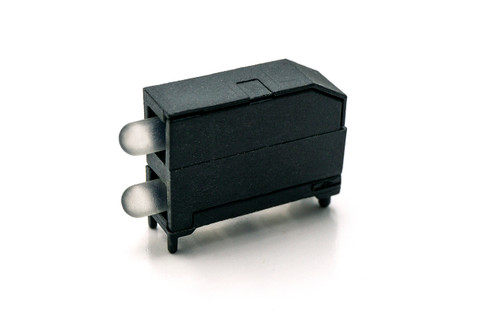

592 Prism® SMD 3mm BiLevel Rnd Hi-Eff, 13" Reel

  • Specifications

    Specifications
    Series 592
    Certifications RoHS
    Status Active
    Lens Size (mm) 3.0
    Lens Shape Round
    Lens Material Silicone
    Levels BiLevel
    Output Single Color
    Position 1 Emitted Color Red
    Position 2 Emitted Color Red
    Packaging Option 13" Reel
    Quantity (per reel/sample) 300
    Test Current Pos 1 10 mA Int / 20 mA Voltage
    Test Current Pos 2 10 mA Int / 20 mA Voltage
    Typ Dominant Wavelength - Pos 1 (nm) 633
    Typ Dominant Wavelength - Pos 2 (nm) 633
    Typ Intensity - Pos 1 (mcd) 12
    Typ Intensity - Pos 2 (mcd) 12
    Typ Fwd Voltage - Pos 1 2
    Typ Fwd Voltage - Pos 2 2
    Max Fwd Voltage - Pos 1 2.3
    Max Fwd Voltage - Pos 2 2.3
    Forward Current - Pos 1 (mA) 30
    Forward Current - Pos 2 (mA) 30
    Peak Fwd Current - Pos 1 (mA) 1000
    Peak Fwd Current - Pos 2 (mA) 1000
    Electrostatic Discharge - Pos 1 (V) 2000
    Electrostatic Discharge - Pos 2 (V) 2000
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
    Solder Max Time/Temp °C 5 sec @ 260 °C
  • C-Drawing 592-xxxx-3xxNF Detailed Spec
    3D STP File 592-PRISM_single-color.stp
    Request Compliance Documentation Request Compliance Documentation
