592-3032-313F

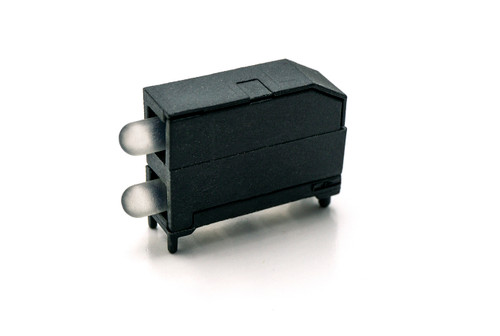

592 Prism® SMD 3mm BiLevel Rnd BiColor R/G,R/Y 13" Reel

  • Specifications

    Specifications
    Series 592
    Certifications RoHS
    Status Active
    Lens Size (mm) 3.0
    Lens Shape Round
    Lens Material Silicone
    Levels BiLevel
    Output BiColor
    Position 1 Emitted Color Red / Green
    Position 2 Emitted Color Red / Yellow
    Packaging Option 13" Reel
    Quantity (per reel/sample) 300
    Test Current Pos 1 2 mA
    Test Current Pos 2 20 mA
    Typ Dominant Wavelength - Pos 1 (nm) 630 / 570
    Typ Dominant Wavelength - Pos 2 (nm) 633 / 587
    Typ Intensity - Pos 1 (mcd) 11/5
    Typ Intensity - Pos 2 (mcd) 21/24
    Typ Fwd Voltage - Pos 1 1.8 / 1.8
    Typ Fwd Voltage - Pos 2 2.0 / 2.0
    Max Fwd Voltage - Pos 1 2.2 / 2.2
    Max Fwd Voltage - Pos 2 2.3 / 2.4
    Power Dissipation - Pos 1 (mW) 0 / 0
    Power Dissipation - Pos 2 (mW) 80 / 80
    Forward Current - Pos 1 (mA) 15
    Forward Current - Pos 2 (mA) 30
    Peak Fwd Current - Pos 1 (mA) 100
    Peak Fwd Current - Pos 2 (mA) 1.0 / 0.2
    Electrostatic Discharge - Pos 1 (V) 2000
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
    Solder Max Time/Temp °C 20 sec @ 240 °C
  • C-Drawing C17882K.pdf
    3D STP File 592-PRISM_BI_TRI_COLOR.stp
    Request Compliance Documentation Request Compliance Documentation
