591-2401-107NF

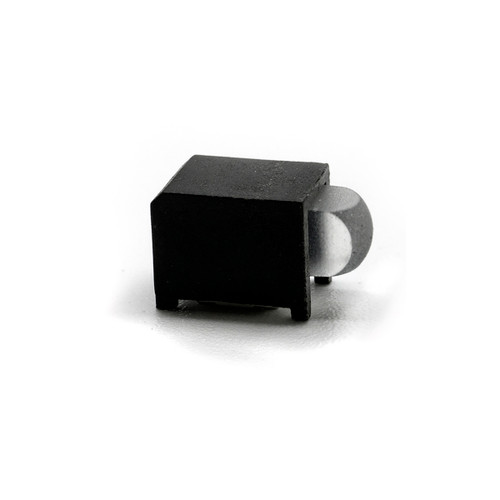

591 Prism® SMD 3mm Sq Y 57mcd, 7" Reel

  • Specifications

    Specifications
    Series 591
    Certifications RoHS
    Status Active
    Lens Size (mm) 3.0
    Lens Shape Square
    Lens Material Silicone
    Levels Single Level
    Output Single Color
    Position 1 Emitted Color Yellow
    Packaging Option 7" Reel
    Quantity (per reel/sample) 400
    Test Current Pos 1 10 mA Int / 20 mA Voltage
    Typ Dominant Wavelength - Pos 1 (nm) 587
    Typ Intensity - Pos 1 (mcd) 57
    Typ Fwd Voltage - Pos 1 2
    Max Fwd Voltage - Pos 1 2.4
    Viewing Angle 40
    Forward Current - Pos 1 (mA) 30
    Peak Fwd Current - Pos 1 (mA) 200
    Electrostatic Discharge - Pos 1 (V) 2000
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
    Solder Max Time/Temp °C 5 sec @ 260 °C
  • C-Drawing 591-2x01-1xxNF Detailed Spec
    3D STP File 591-PRISM_square_lens.stp
