591-2101-113F

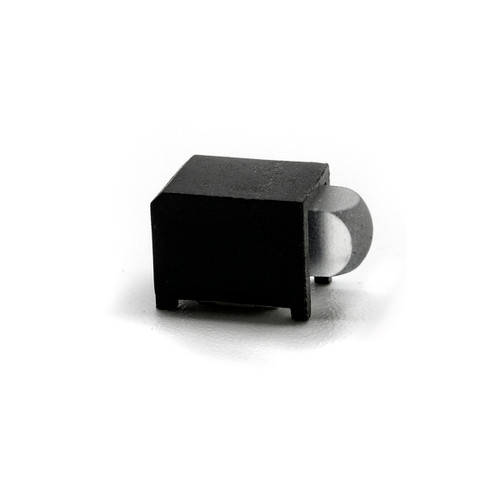

591 Prism® SMD 3mm Sq R 645nm 13" Reel

  • Specifications

    Specifications
    Series 591
    Certifications RoHS
    Status Active
    Lens Size (mm) 3.0
    Lens Shape Square
    Lens Material Silicone
    Levels Single Level
    Output Single Color
    Position 1 Emitted Color Red
    Packaging Option 13" Reel
    Quantity (per reel/sample) 1600
    Test Current Pos 1 10 mA
    Typ Dominant Wavelength - Pos 1 (nm) 645
    Typ Intensity - Pos 1 (mcd) 38
    Typ Fwd Voltage - Pos 1 1.75
    Max Fwd Voltage - Pos 1 2.5
    Power Dissipation - Pos 1 (mW) 90
    Forward Current - Pos 1 (mA) 30
    Peak Fwd Current - Pos 1 (mA) 500
    Operating Temperature -40°C to +100°C (-40F to +212°F)
    Storage Temperature -40°C to +100°C (-40F to +212°F)
    Solder Max Time/Temp °C 30 sec @ 260 °C
  • C-Drawing C17429B.pdf
